Boot/Bench cable Scanmatik PCMflash v2
$74.67
Boot/Bench cable Scanmatik PCMflash v2
Popular
Not available
Points: 1
Specification
| Guarantee, months12 months |
Shipping Information
Enter a delivery address
Description
⚠️ DISCONTINUED / OUTDATED MODEL
This item is no longer available for purchase.
Please check the original next-generation cable directly from the official manufacturer: Scanmatik TunerWire.

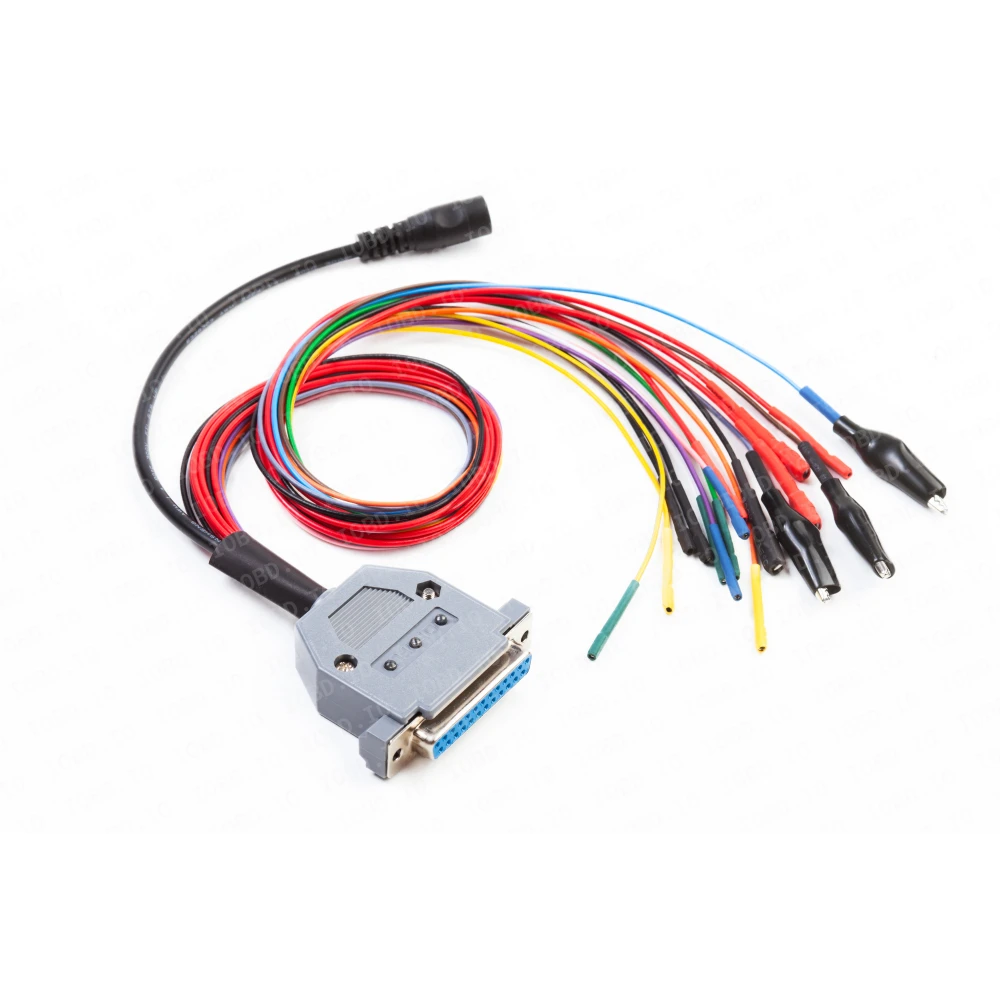

Boot / Bench cable PCMflash for Scantool 2 and Scantool 2 PRO. Compatible with modules 53 and 71 PCMflash.
Adapter produced in Russia.
Second version (V2) with automatic power and boot line switching.
The adapter has LEDs to display its status.
Pinout for Boot / Bench cable Scantool 2:
- +12V - red (2 big(2.5) and 2 medium(1.2) contacts)
- GND - black (2 big(2.5) and 1 small(0.6) contact)
- CAN H - white (1 medium(1.2) contact)
- CAN L - green (1 medium(1.2) contact)
- K-Line - yellow/black (with green comb) (1 small(0.6) contact)
- GPT1 - (yellow 1 medium(1.5) contact)
- GPT2 - orange (1 medium(1.2) contact)
- VPP - purple (1 small(0.6) contact)
- VPROG_AUX - pink (1 small(0.6) contact)
- CNF1 - blue (for module 53) (crocodile, 1kΩ)
- boot1 - gray (for module 53) (crocodile, 1kΩ)
- boot2 - brown (for module 53) (crocodile, 1kΩ)
Specifications Boot/Bench cable Scanmatik PCMflash v2
Technical Details
| Guarantee, months | 12 months |
|---|
