Scanmatik TunerWire

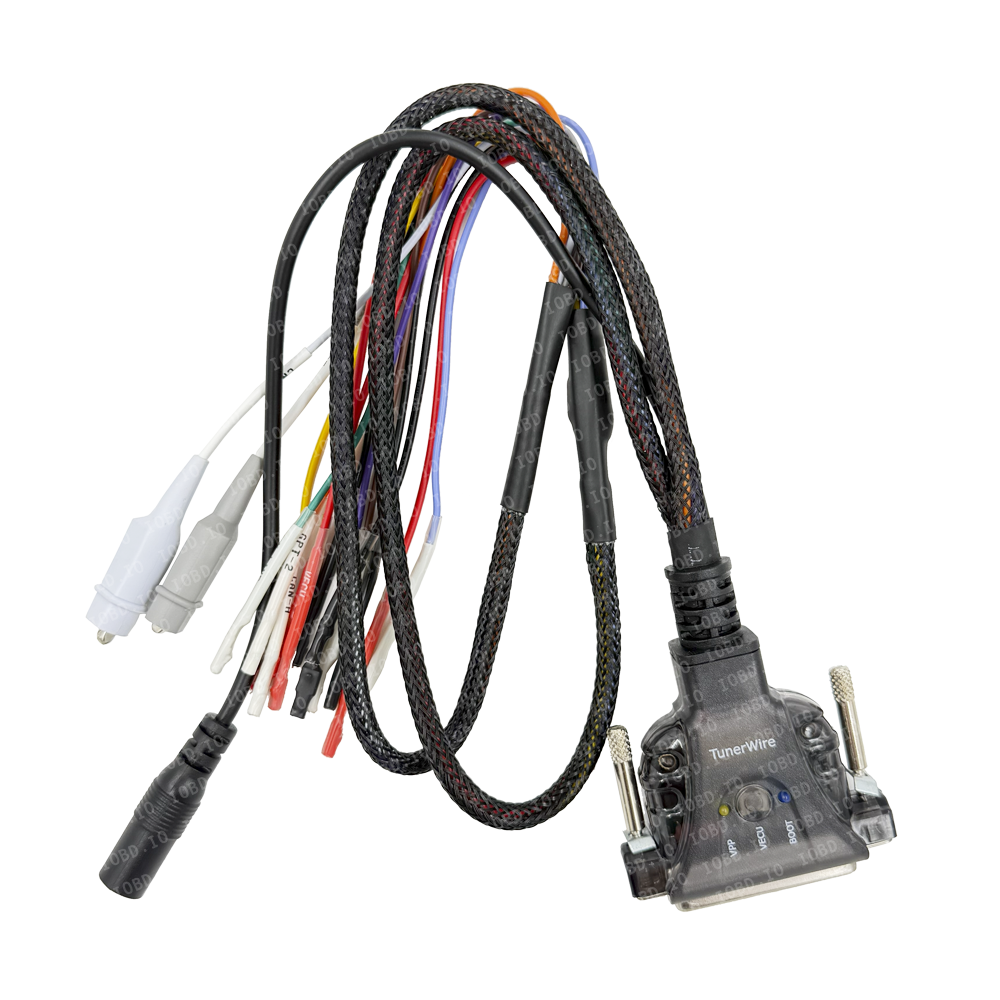

Scanmatik TunerWire — Professional Boot / Bench Cable for ECU Diagnostics and Chip Tuning

Scanmatik TunerWire is a next-generation Boot / Bench cable designed for working with automotive ECUs (Engine Control Units) in diagnostics and chip tuning applications. Developed based on extensive hands-on experience with a wide range of ECUs, it ensures stable connections, advanced protection, and maximum ease of use.

The cable is идеально suited for professionals involved in ECU flashing, chip tuning, and vehicle diagnostics, and is fully compatible with popular software such as PCMflash, BitBox, and Combiloader and other programs.

Key Advantages of Scanmatik TunerWire

• Automatic GPT Signal Adjustment
• Unique circuitry eliminates the need for external resistors or capacitors when working with problematic ECUs such as EDC7C32, EDC16CP33, EDC17C49, and others
• Wide ECU Compatibility
• Tested on all ECU types from EDC and Simos families supported by major chip tuning software
• Manual and Automatic Power Control Modes
• Flexible operation depending on your workflow
• Forced ECU Power Button (VECU)
• With LED indication for full control during operation
• Advanced Protection System
• short circuit protection
• reverse polarity protection
• overvoltage protection up to 36V
• Durable CAN Line Resistor
• Resistant to burnout even in case of incorrect power connection
• High-Power Switching Circuit
• Ensures reliable operation with ECUs requiring high startup current
• Ergonomic BOOT/CNF Clips
• Non-slip design, stable grip during operation
• Color-Coded Wiring
• Fully compliance with PCMflash documentation for error-free connection
• Reinforced Terminal Tips
• Made from rigid heat-shrink tubing, preventing bending during use
• Status Indicators
• BOOT / CNF / Vpp line indication for quick diagnostics
• Stable Desktop Design
• Built-in stand for comfortable work on the table
• Adapters Included
• Supports ECUs with different terminal types out of the box

Technical Specifications

• Power Supply Voltage: 12–36 V
• Cable Length: 0.6 m
• Weight: 150 g

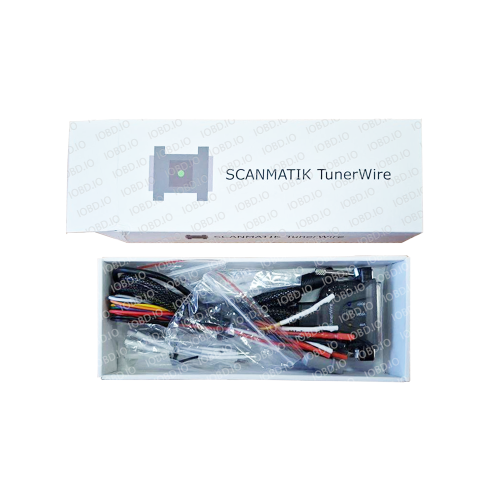

Package Contents

• Scanmatik TunerWire cable

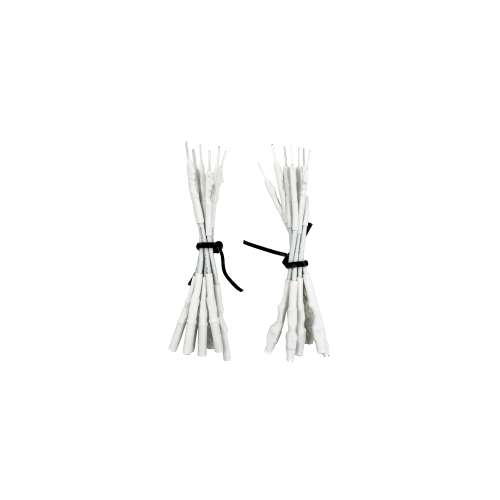

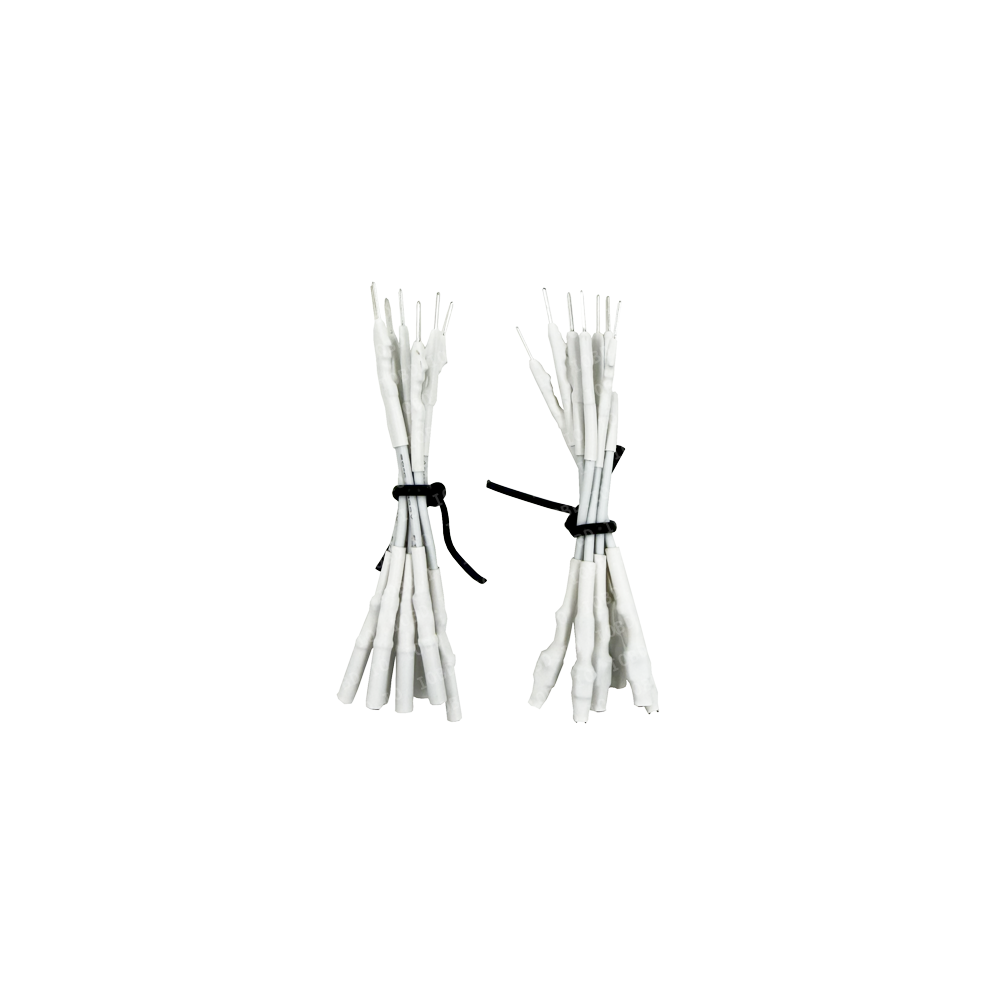

• Flat terminal adapters (Lyra 2.1 mm) — 7 pcs
• Round terminal adapters (2 mm) — 7 pcs
