Description

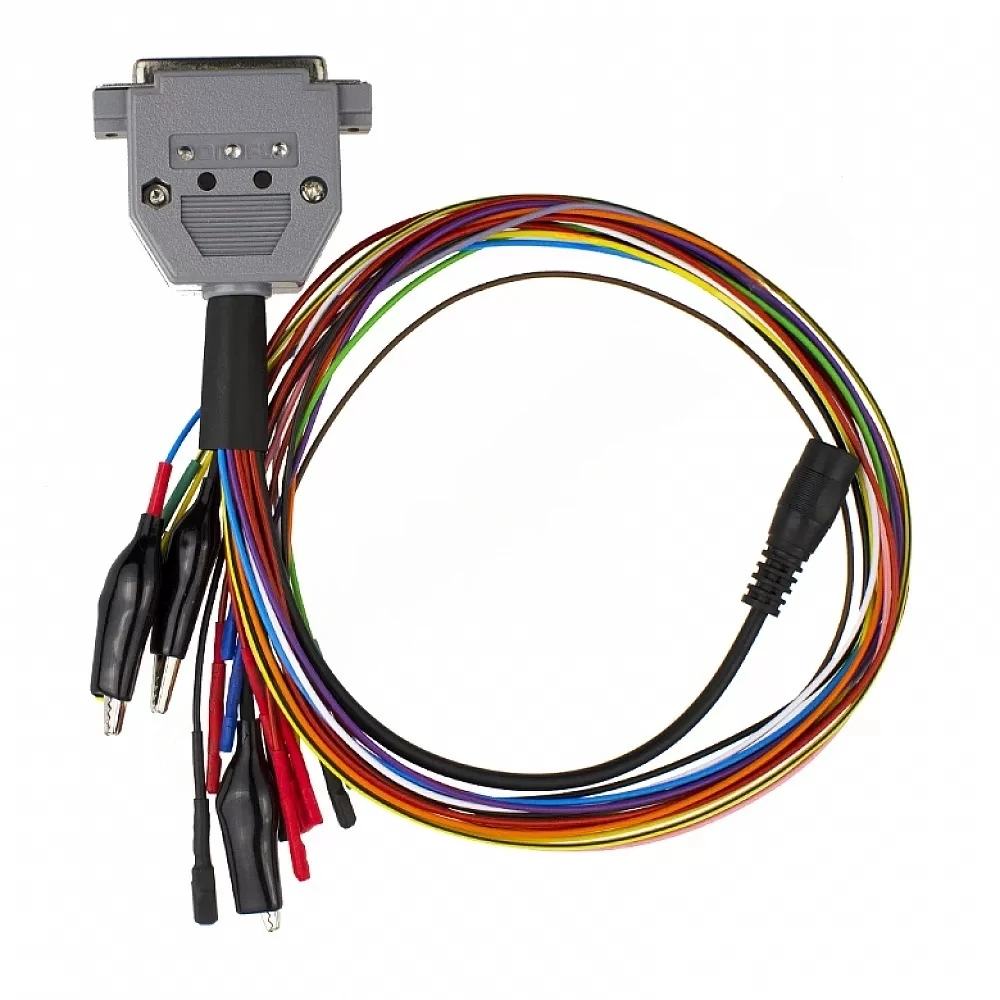

Boot / Bench cable PCMflash for Scanmatik 2 and Scanmatik 2 PRO. Compatible with modules 53 and 71 PCMflash.
Adapter made in Russia.
You can buy a cheaper model with the same functionality from us Boot/Bench cable Scanmatik 2 (automatic and manual)
Third version (V3) with automatic and manual power and signal line switching.
The main difference from V2 is the presence of buttons for manual power control.
This adapter is also suitable for working with MD Flasher.
The adapter has LEDs to indicate the status.
Pinout of Boot / Bench cable Scanmatik 2:
- +12v - red (2 large(2.5) and 2 medium(1.2) contacts)
- GND - black (2 large(2.5) and 1 small(0.6) contact)
- CAN H - white (1 medium(1.2) contact)
- CAN L - green (1 medium(1.2) contact)
- K-Line - yellow/black (with green comb) (1 small(0.6) contact)
- GPT1 - (yellow, medium-sized contact 1.5)
- GPT2 - orange (medium-sized contact 1.2)
- VPP - purple (small contact 0.6)
- VPROG_AUX - pink (small contact 0.6)
- CNF1 - blue (for module 53) (crocodile clip, 1kΩ)
- boot1 - gray (for module 53) (crocodile clip, 1kΩ)
- boot2 - brown (for module 53) (crocodile clip, 1kΩ)
Specifications Boot / Bench cable Scanmatik 2 PCMflash v 3
Technical Details
| Guarantee, months | 12 months |
|---|
