Boot/Bench cable Scanmatik 2/3 (automatic and manual)

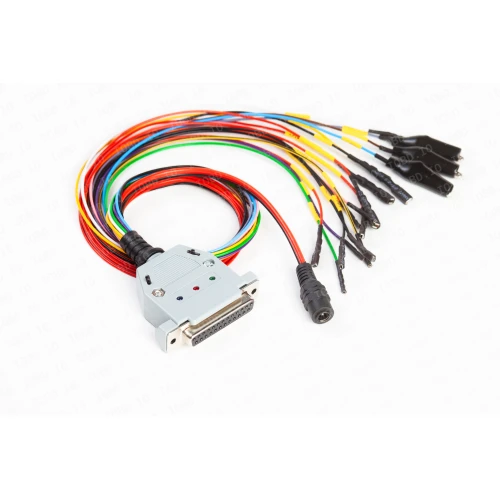

Boot/Bench Cable for Scanmatic 2/2 Pro and Scanmatic 3 with Automatic and Manual Power & Boot Control

The universal Boot/Bench cable for Scanmatic 2 / 2 PRO and Scanmatic 3 is a professional solution for ECU programming and working in Boot and Bench mode. Fully compatible with popular flash tools including PCMflash, MD Flasher, BitBox, and others.

Supports Automatic and Manual ECU Power Control:

Automatic mode is implemented via the L line — your flasher must support automatic power control. Manual mode is controlled via toggle switches, allowing you to manage power supply and Boot mode activation reliably.

Cable Features:

• Full compatibility with Scanmatic 2 and 3
• Boot and Bench mode support
• Power status LEDs
• All wires are labeled with white shrink sleeves
• Made in Russia — high build quality and reliability

Tested with the following modules:

• PCMFlash: 42, 44, 53, 58, 71, 77, 80, 86, 89
• BitBox: Bosch MG1/MD1 BENCH
• MD Flasher: License 14 and others

Pinout of Boot / Bench cable for Scanmatik 2:

• +12V - red (2 large and 2 small contacts)
• GND - black (1 large and 2 small contacts)
• CAN H - white (1 small contact)
• CAN L - green (1 small contact)
• K-Line - yellow with black (1 small contact)
• GPT1 - orange (1 medium contact)
• GPT2 - yellow (1 medium contact)
• VPP - purple (1 small contact)
• VPROG_AUX - pink (1 small contact)
• BOOT1 - gray (crocodile clip)
• BOOT2 - brown (crocodile clip)
• CNF1 - blue (crocodile clip)
