CLU-B Cable Kit for coding and testing of instrument clusters
The CLU-B cable kit is designed for connecting dashboards of KIA and Hyundai vehicles from 2020 onward when using CAN-Hacker diagnostic interfaces. The kit is used for automotive diagnostics, coding, and testing of instrument clusters, as well as working with vehicle electronic systems via CAN/LIN networks.
The cable is equipped with an instrument cluster menu control button module, allowing full interaction with the cluster interface during diagnostics, testing, and configuration.
The main cable of the kit includes a menu control button module, which enables operation together with the TYW option (sold separately). This significantly expands the functionality when working with modern KIA and Hyundai instrument clusters.
The kit is intended for professionals working in automotive diagnostics, ECU programming, and CAN/LIN bus analysis.
Compatibility
The CLU-B cable kit is fully compatible with the following CAN-Hacker diagnostic interfaces:
- CAN-Hacker CH-P FDL2 Full Kit
- CAN-Hacker CH-OBD-FD FULL Kit
- CAN-Hacker CH-OBD-FD Coder L2
It is used for working with CAN and LIN networks of KIA and Hyundai vehicles, including bench connection of instrument clusters.

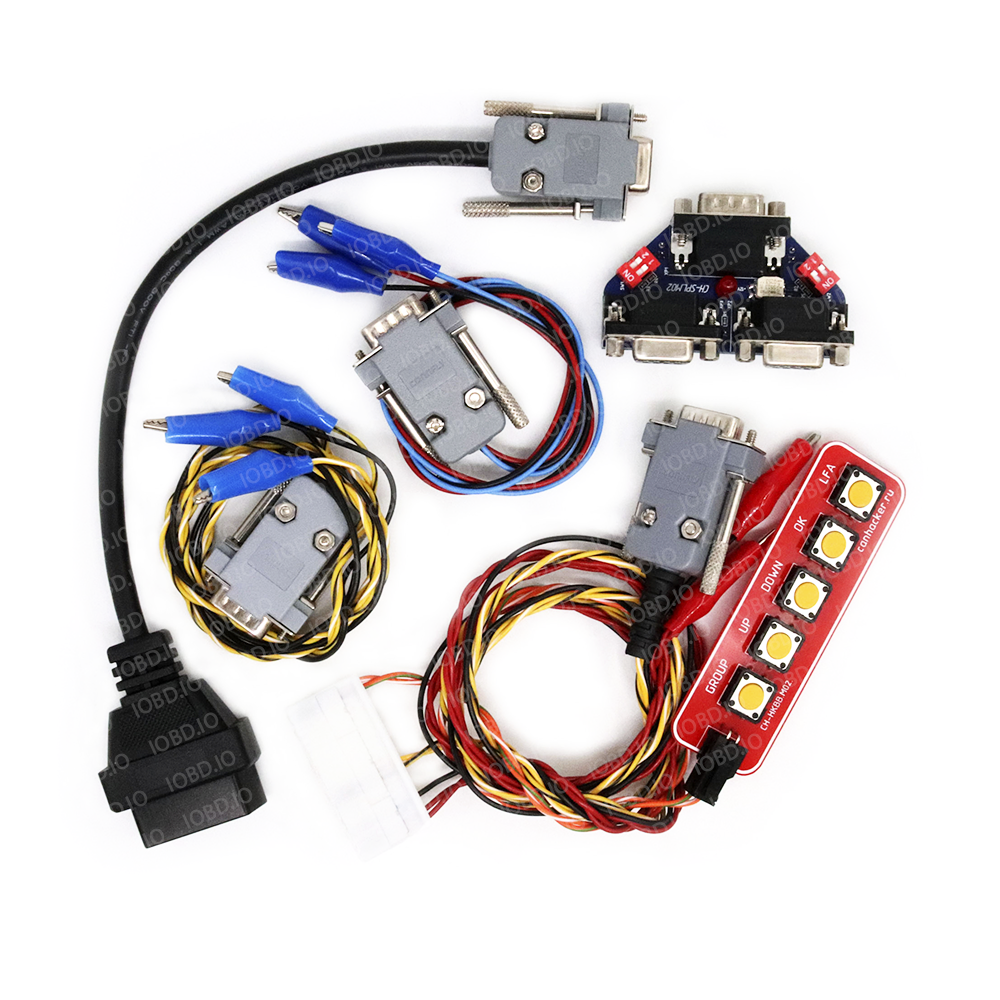

Package Contents
The kit includes:
- OBD2 to DB9 adapter
- CAN/LIN splitter
- CAN cable
- LIN cable
- CLU-B cable for connecting instrument clusters
