$560.00
* +4% Order Processing Fee applies. No extra payment service fees.
Interface CAN-FD, CAN, LIN. Option CAN-CODER L2 for variant coding KIA\HYUNDAI is activated.
- Update June 2023
- Unlike CAN-Hacker CH-P, it has the ability to work with CAN-FD bus
- Options CAN-Coder L2 and Analyzer CAN-FD, CAN and LIN are activated by default
- Support for certification function in ICU module for OBD2 operation
- To update interfaces released in 2021 to CAN-CODER L2 level, you need to purchase the corresponding option
- All manuals and technical documentation are included in the CAN-CODER-L2 download package
- No localization functions
- Exclusively for professional use. The user confirms that they have the knowledge and skills necessary to work with this equipment and software
Main differences between the models:
| CH-P FDL2 Full kit | CH-P FDL2 | CH-OBD-FD Full Kit | CH-OBD-FD Analyzer | CH-OBD-FD Coder L2 | 3.3 | |
| Number of CAN-FD channels | 2 CAN / CAN-FD | 2 CAN / CAN-FD | 1 CAN / CAN-FD | 1 CAN / CAN-FD | 1 CAN / CAN-FD (optional) | 1 CAN |
| Number of LIN channels | 1 LIN | 1 LIN | 1 LIN | 1 LIN | 1 LIN (optional) | 1 LIN (optional) |
| Analyzer program | Yes | Yes | Yes | Yes | Optional | Yes |
| Coder L2 Program | Yes | Optional | Yes | Optional | Yes | No |
| Coder Program | Yes | Optional | Yes | Optional | Optional | Optional |
| Coding KIA/ Hyundai | Yes | Optional | Yes | Optional | Yes | No |
| Odometer KIA/ Hyundai | Yes | Optional | Yes | Optional | Yes | No |
| Equipment |
Interface CH-P FDL2; Cable for CAN-FD, CAN bus; Cable for LIN bus; Cable for dashboards; Cable OBD2; Cable USB. |
Interface CH-P FDL2; Cable for CAN-FD, CAN bus; Cable for LIN bus; Cable USB. |
Interface CH-OBD-FD; Adapter OBD2-DB9; Splitter CAN-LIN; Cable for CAN-FD, CAN bus; Cable for LIN bus; |
Interface CH-OBD-FD; Adapter OBD2-DB9; Splitter CAN-LIN; Cable for CAN-FD, CAN bus; Cable for LIN bus. |
Interface CH-OBD-FD. |
Adapter CAN-USB; Cable for CAN bus. |
Interface technical specifications:
- Number of CAN-FD channels: 2
- Number of LIN channels: 1
- CAN-FD bitrate: 2 Mbit/s
- Software-controlled terminating resistors 120 Ohm on CAN-FD channels
- Maximum allowable voltage range
between CAN-High and CAN-Low lines: -42....+42 V - Powered by USB port of the computer
- Durable aluminum housing
- Computer connection: USB 2.0 Virtual COM Port, CDC class
- Recommended operating system: Windows 10
Supported software:
- CARBUS Analyzer
- CAN-Coder L2
- CAN-Coder

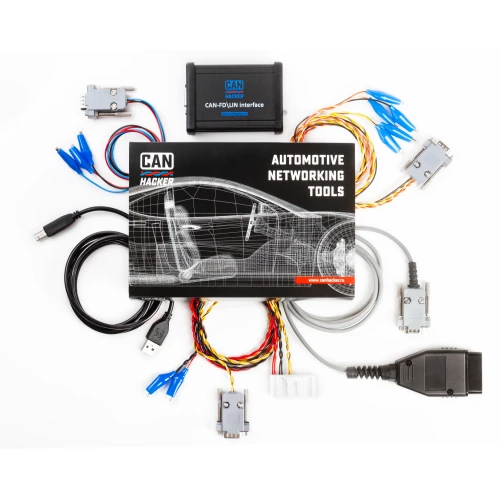

Package contents:
- CAN-Hacker CH-P FDL2 interface
- Option CAN-CODER L2 is activated
- Options for CAN-FD, CAN, LIN bus analyzers are activated
- Cable with crocodile clips for connecting to CAN-FD, CAN bus
- yellow with black stripe - CAN-Low channel 1
- yellow with white stripe - CAN-High channel 1
- orange with black stripe - CAN-Low channel 2
- orange with white stripe - CAN-High channel 2
- black - GND (ground)
- Cable with crocodile clips for connecting to LIN bus
- - red - +12 V
- black - GND (ground)
- blue - LIN bus - OBD2 Cable
- USB cable
Important:
This function is available only on certain BMW engines and is NOT applicable to other vehicle brands.
The information below applies only to stock engines with factory ECU software and a standard exhaust system.
What This Parameter Actually Represents
This is NOT a direct measurement of fuel octane and is NOT a direct octane reading calculated by the ECU.
The value is an adaptation factor ranging from 0 to 1, where:
- 0 = no correction
- 1 = maximum correction
According to BMW’s internal definition:
Faktor adaptierte Kraftstoffqualität (0 = ROZ98 / 1.0 = ROZ91)
- 0 corresponds to 98 ROZ
- 1.0 corresponds to 91 ROZ
ROZ is the German equivalent of RON (Research Octane Number).
The device converts this multiplier into a more intuitive octane value for user convenience.
⚠️ The device does not measure anything itself.
It only displays the data provided by the engine control unit (ECU).
How the ECU Evaluates Fuel Quality
Each ECU has different calibration sensitivity:
- Sensitivity to the adaptation factor
- Sensitivity of the knock control system
Fuel quality is evaluated subjectively by the ECU, primarily based on:
- Knock ignition timing corrections
- Overall engine noise levels
BMW G-Series & LCI F-Series (B-Engines)
B38 / N63 / S63 / N74
These engines are highly sensitive to octane adaptation.
- During warm-up and cruising, the displayed octane may frequently drop to 95 or lower.
- This does NOT automatically indicate poor fuel quality.
- Under load, the value should increase.
⚠️ If the value continues to decrease under load, this may indicate a problem.
B46 / B48 / B58
These engines have low sensitivity.
- During cruising, octane will typically display maximum values even with mediocre fuel.
- Under load, the value will decrease if fuel quality is truly poor.
S58
Octane correction is virtually inactive.
- It will typically always show 98.
- If it drops below 98, fuel quality is genuinely very poor.
BMW F-Series (Pre-LCI) with N/S Engines
Most pre-LCI F-series ECUs do not calculate octane adaptation.
Do not expect this parameter to function.
S55
- Octane parameter not used by the system
- Display not supported
- However, display of the last 5 refueling quality events is supported
S63
- Octane parameter not used
- Display not supported
- Refueling quality display not supported
BMW E-Series
Octane parameter not available. Display not supported.
Important Notes About Tuned Vehicles
With modified hardware or custom tuning, behavior may vary significantly. Always consult your tuner regarding expected operation.
Key principles:
- If octane drops under load, it means fuel quality is worse than expected under those conditions.
- This does NOT automatically mean the fuel itself is bad.
Examples:
- If a tuner increases ignition timing and boost pressure, even good fuel may cause knock corrections, and the ECU may interpret it as poor fuel.
- Thin-walled or poorly mounted exhaust systems may create parasitic noise, which the ECU may interpret as engine knock, causing negative correction.
- Conversely, if knock sensitivity is reduced or octane correction is disabled in tuning, readings may appear ideal while actual engine safety is compromised.
