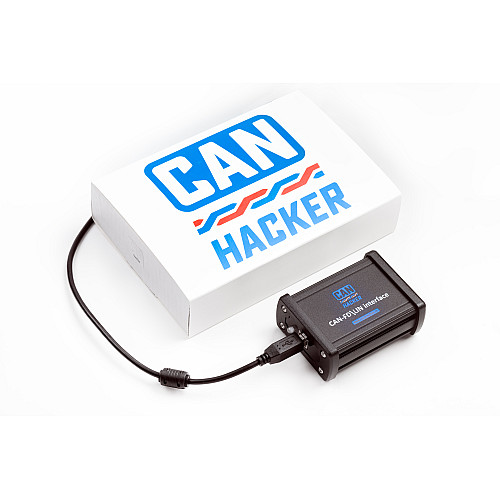

CAN-Hacker CH-P FDL

Universal CAN (+ CAN-FD) and LIN bus analyzer in a durable aluminum case.

Technical specifications:

• CAN bus analyzer: 2 channels
• LIN bus analyzer: 1 channel (no activation required)
• Software-controlled 120 Ohm resistors on each CAN channel
• Complete galvanic isolation
• Durable aluminum case
• Throughput: 4000\8000 frames per second (depending on firmware type)
• Computer connection: USB 2.0 Virtual COM Port, CDC class
• Additional options: Leaf-Coder, CAN-Coder, OBD2 Cable
• Software: CARBUS Analyzer

The CAN-Hacker CH-P interface will help solve the following tasks:

• Analyze the operation of CAN and LIN buses in cars and special vehicles.
• Activate control units and assemblies controlled by CAN and LIN buses "on the table" (for example, steering racks and EPS/EUS assemblies)
• Emulate the operation of sensors and control units directly on the car
• Program car control units
• Reverse-engineer CAN/LIN networks for monitoring and telemetry of vehicles

All these capabilities will provide invaluable support in the process of car repair, as well as during the installation and development of additional security, telematics, and navigation equipment for any mobile machinery.

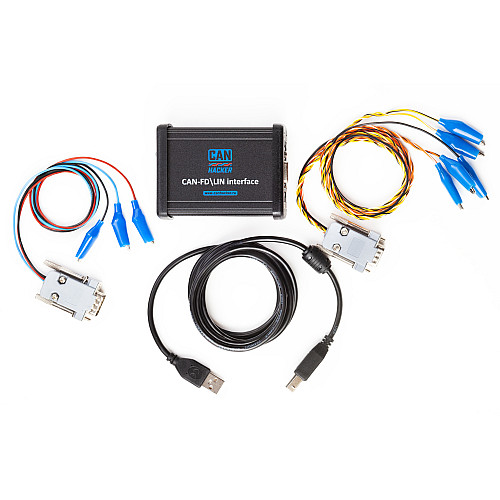

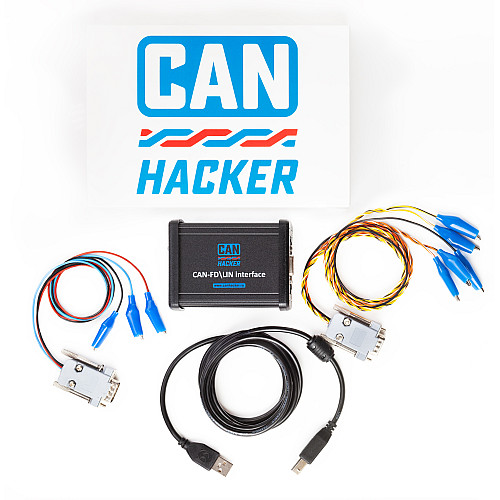

Package contents

• CAN-Hacker CH-P interface
• CAN cable
• LIN cable
• USB type B cable
