TYW Adapters Connection Set for Advanced Instrument Cluster Programming

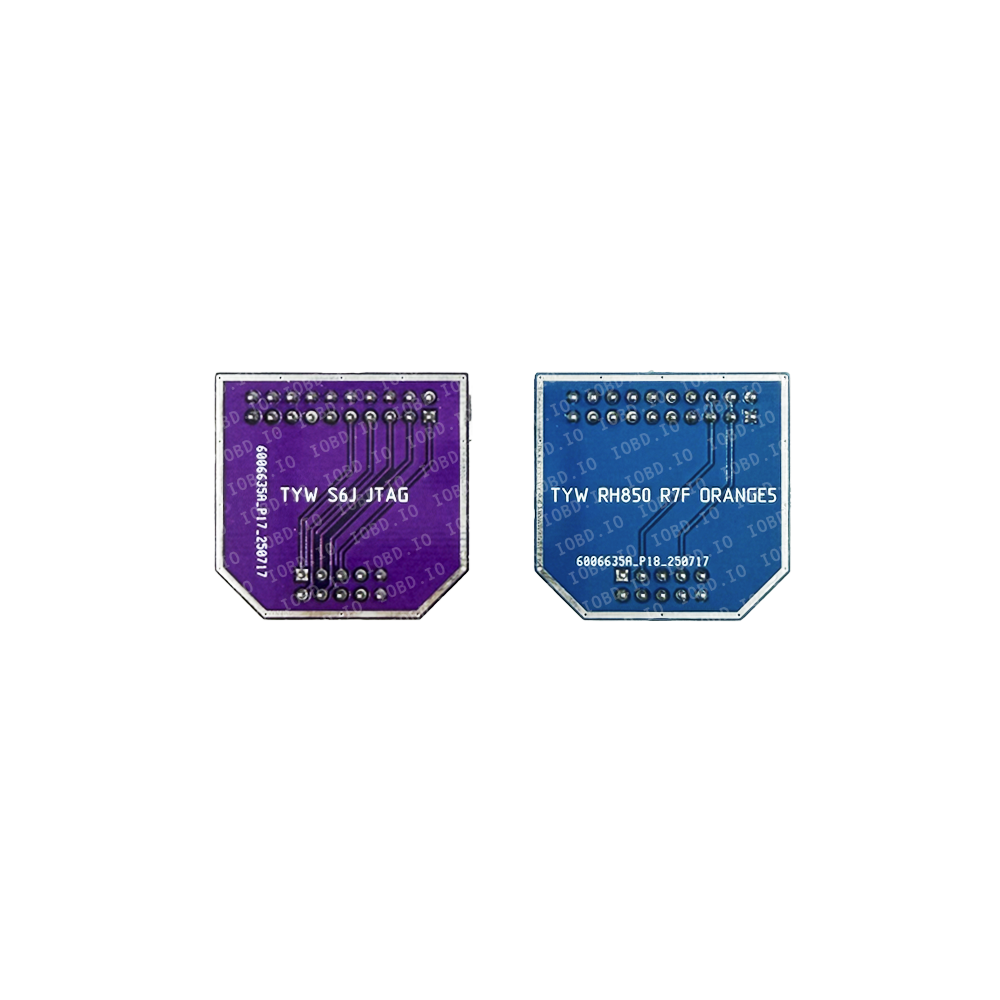

The TYW Adapter kit, designed as a Renesas RH850 programming adapter and Spansion S6Jxxx JTAG adapter, is a specialised instrument cluster repair tool engineered for modern TYW-type dashboards. These clusters are widely used in recent Kia and Hyundai vehicles and typically feature advanced MCU architectures with restricted physical access.

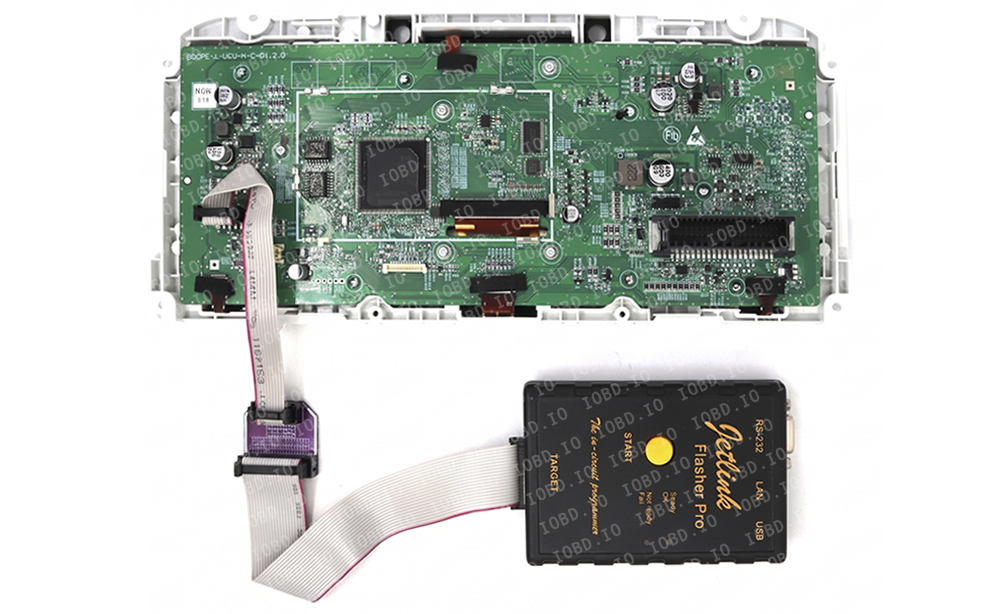

Working with fine-pitch or BGA-mounted microcontrollers such as R7F701xxx MCU programming targets presents a significant challenge in workshop environments. Traditional soldering approaches increase the risk of pad damage, unstable connections, and irreversible PCB faults. The CANHacker TYW option hardware addresses this by enabling a no-soldering dashboard connection, providing a secure and repeatable interface via JTAG or supported communication lines.
Technical Specifications
- Supported MCUs:
- Renesas RH850 (e.g., R7F701025, R7F701071, R7F701xxx series)
- Spansion S6Jxxx (Traveo series, e.g., S6J3001)
- Connector Types:

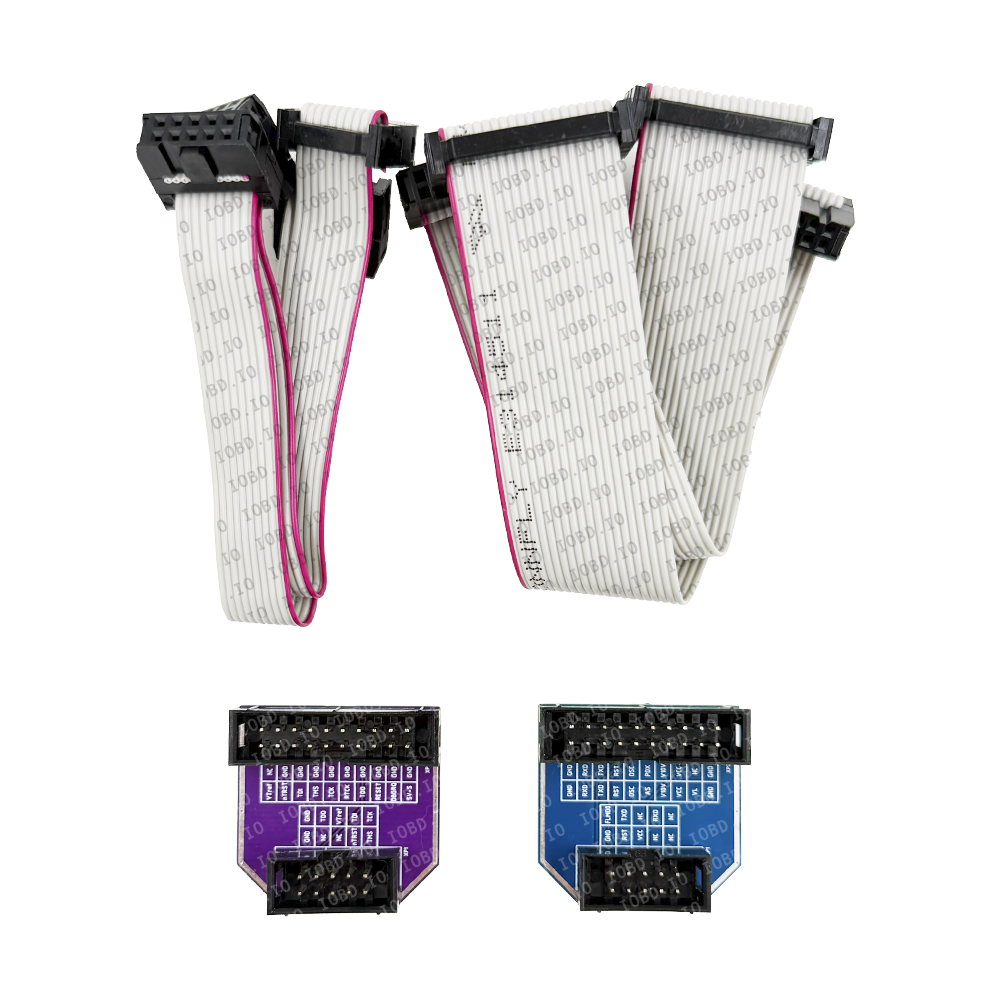

- High-quality ribbon cables (4 pcs included)
- Interface:
- JTAG / UART (depending on programmer configuration)
- Hardware Compatibility:
- Orange5
- J-Link
- Applications:
- Instrument cluster repair
- Data recovery
- MCU programming and firmware flashing
IMPORTANT: When connecting the ribbon cable to the instrument cluster, pay attention to the position of the first contact! The first contact of the ribbon cable connector must match the first contact of the instrument cluster programming connector. Incorrect connection may damage the instrument cluster!
