$818.18
* +4% Order Processing Fee applies. No extra payment service fees.
Porsche BCM Module for VAG IMMO Calculator — Professional IMMO & BCM Solution.
The Porsche BCM Module is a professional software extension designed for advanced diagnostics, EEPROM editing, and immobilizer (IMMO 5) data processing in Porsche vehicles. It is an essential tool for automotive diagnostics specialists, chip tuning engineers, and ECU programmers.
Activation requires the VAG IMMO Calculator base package. When ordering, please indicate the Serial Number of the key.
Key features of the module:
- Full support for FRONT BCM and REAR BCM modules
- Advanced EEPROM IMMO 5 data editing
- Editable parameters include:
- VIN
- Fazit
- ECU CS / KEY CS
- MAC values (ECU, SLAVE ECU, TCU, ELV, BCM)
- PowerClass
- KeyCount / Keys
- VTS (Vehicle Tracking System) status
- Component configuration editing
- Rear BCM binding to Front BCM
- VTS system disable function
- IMMO data export for:
- ECU (e.g., MED17)
- SLAVE ECU
- TCU
- ELV

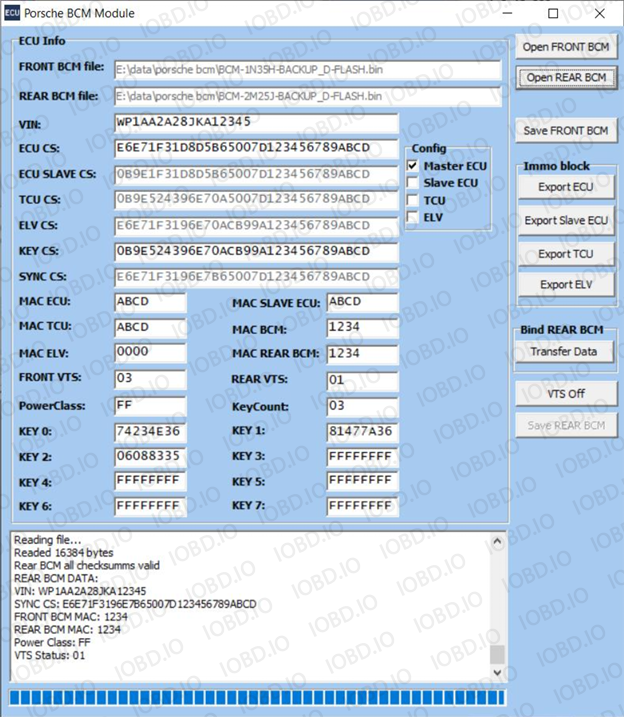

Workflow & Operation
EEPROM File Loading
To start working with the module:
- Load EEPROM files using:
- Open FRONT BCM
- Open REAR BCM
During loading:
- File size validation is performed
- Diagnostic information is displayed in the status window
After successful validation, IMMO data becomes доступ for editing.
IMMO Data Editing
Supported editing modes:
- Manual parameter input
- Value copy/paste
Editing is available when the Front BCM EEPROM is loaded.
BCM Binding Procedure
To synchronize BCM modules:
- Click Bind REAR BCM → Transfer Data
- Automatic data transfer is executed
- Save dialog for REAR BCM EEPROM appears
VTS Disable Function
- Click VTS Off
- Save both BCM EEPROM files to apply changes permanently
IMMO Data Export Functions
The module provides export tools for component pairing and cloning:
- Export ECU – generates IMMO data for engine control units (e.g., MED17)
- Export SLAVE ECU – for secondary ECU units
- Export TCU – for transmission control modules
- Export ELV – for electronic steering lock
Automatic data validation is performed before export.
Saving Changes
- Use Save EEPROM to store modifications
- Built-in validation ensures data integrity before saving
Technical Notes
- Supports IMMO version 5 only
- Exported data is compatible exclusively with IMMO 5 systems
- Requires valid EEPROM dump files
