Activation of PCMflash Module 99: Volvo/Renault TRW EMS2.3/EMS2.4 Bootloader
The PCMflash Module 99 is designed for professional work with engine control units (ECUs) used in Volvo and Renault trucks. This module enables stable and efficient interaction with TRW EMS2.3 and EMS2.4 systems based on MPC5674 and SPC5777 processors, making it an essential tool for diagnostics, firmware operations, and chip tuning.
Volvo/Renault EMS 2.3/2.4 Flash [RD/WR/CK]
Volvo/Renault EMS 2.3/2.4 EEPROM [RD/WR]
To activate the module you need a USB dongle PCMflash. When ordering, please indicate the Serial Number of the key.
Features and Functions of Module 99
Module 99 provides a comprehensive set of capabilities required for ECU service and calibration:
- Full Flash reading and writing (R/W)
- Automatic checksum (CS) verification and correction
- Stable operation in Bootloader mode (bench work)
- Optimized workflow for Volvo EMS 2.4 reading/writing and Renault EMS 2.3 firmware
Supported ECU Types
The module supports the following control units:
- Volvo EMS 2.3
- Volvo EMS 2.4
- Renault EMS 2.3
- Renault EMS 2.4
These ECUs are widely used in Euro 5 and Euro 6 trucks, including Volvo FH4 and Renault Trucks models.
Advantages of Using PCMflash
Choosing PCMflash Module 99 ensures:
- High reliability and stable communication with ECUs
- Regular software updates and protocol improvements
- Compatibility with trusted J2534 adapters, especially Scanmatik 2 PRO
- Efficient chip tuning for Volvo FH4 and Renault trucks
The solution is optimized for professionals who require precision when working with MPC5674 and SPC5777 architectures, including checksum correction (CS) and pinout handling for EMS 2.4.
Important Note
To use the module, a valid PCMflash USB protection key and base software are required. Operation depends on the ECU revision—Bootloader mode may allow bench work without opening the unit (refer to official documentation for details).

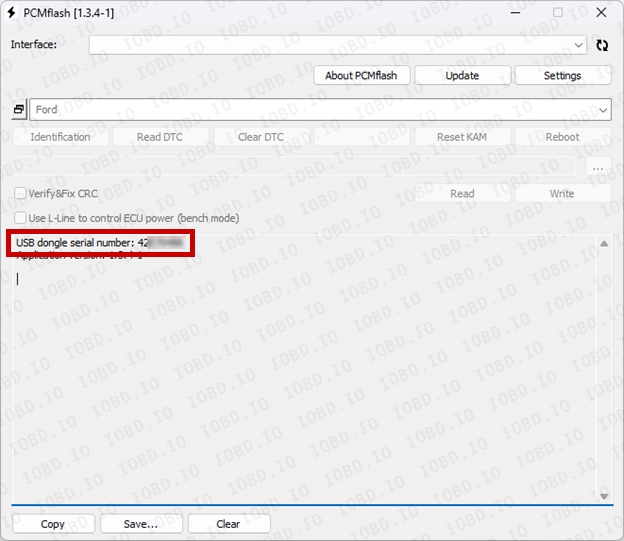

Run the program and on the main screen it says "USB dongle serial number"
Launch the program and click “Settings”
Paste the code to activate the module and click “Activate”
After rebooting, the activated module should be displayed, highlighted in bold text.
