Scripts allow you to write down a key in case of complete loss, or add an additional one. All variants and types of systems are supported: MC9S12XDP512 EWS4, MC9S12XEP100 EWS4, MC9S12XEP100 EWS5.
The script only works with iProg Pro programmer!
The scripts work via OBD on the car, and also via CAN on the table; to work, you need an Eeprom/DataFlash dump of the CAS4 unit processor.
The scripts automatically identify the EWS4/EWS5 system type by OBD or CAN, as well as by mc9s12xep100 processor dump.
In case of EWS5, ISN DME/DDE 16 bytes will be required.
Reading and writing the key through the standard emergency start antenna (on the right of the steering column), or an alternative one on the table.
Supported Models:
- 5 Series: F07, F10, F11, F18;
- 6 Series: F06, F12, F13;
- 7 Series: F01, F02, F03, F04;
- X Series: F25, F26.
The key options, their compatibility, the CAS connection diagram for working on a table, the operating procedure are described additionally in the help.
Open the program and click “Help” -> “About”.
Copy data from the program when placing an order
After completing the order, you will receive files, they must be added to the Scripts folder..

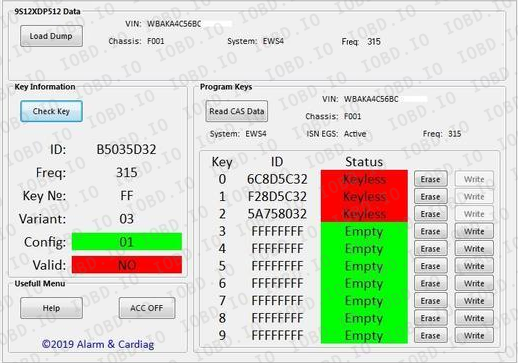

Launch the program and on the left side of the screen you will see the added scripts.
