Adapter SOT23-6 - DIP8
$66.75
Adapter SOT23-6 - DIP8
New
Will end soon
Points: 1
In stock
$66.75
* +4% Service fee applies.
Shipping Information
Enter a delivery address
Description

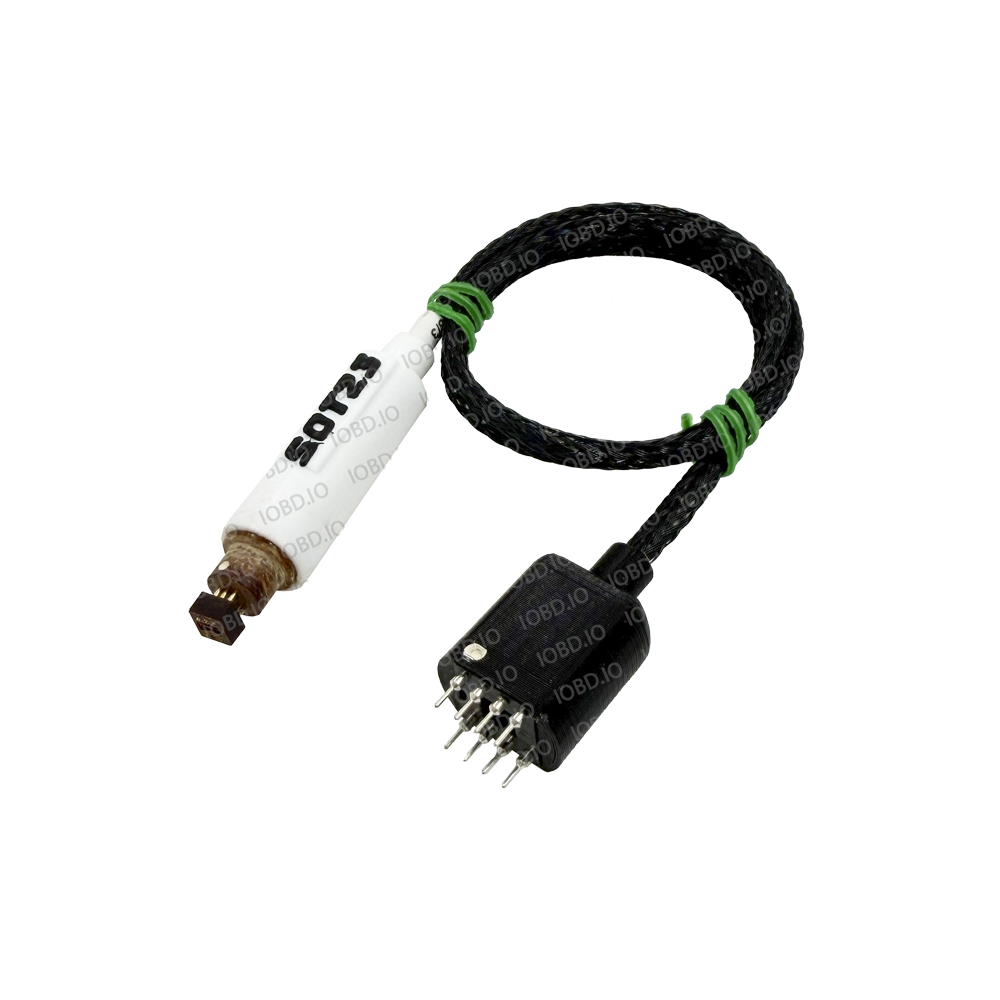

SOT23-6 In-Circuit EEPROM Programming Adapter with PA50-Q1 Pogo Pins
This adapter is designed for convenient and safe in-circuit programming of EEPROM chips in SOT23-6 packages without the need for desoldering.
Key Specifications:
- Chip package type: SOT23-6
- Pin pitch: 0.95 mm
- Row spacing: 2.2 mm
- Contact type: spring-loaded pogo pins P058-Q1
- Connection method: direct contact to IC pins at solder joints
- Pinout: non-standard (refer to pinout diagram)
- Cable length: ~450 mm
Interface:
Programmer side uses a DIP-8 precision socket:
- pitch: 2.54 mm
- row spacing: 7.62 mm
- pin height: 3.0 mm
Design Features:
- Equipped with a centering cap, which:
- ensures precise positioning on the IC
- reduces the risk of misalignment during connection
- Flexible, durable braided cable for ease of use
- Reliable PA50-Q1 pogo pins ensure stable contact without damaging the PCB
Compatibility:
The adapter has been tested with popular programmers, including:
Advantages:
- No need to remove the chip from the board
- Fast and convenient connection/disconnection
- Ideal for repair, diagnostics, and firmware flashing
- Minimizes risk of component damage
Applications:
- Electronics repair and servicing
- BIOS, EEPROM, and Flash memory programming
- Laboratory and production use
