Adapter 44-pin for iProg Pro

Universal 44-pin Breakout Adapter for iProg Pro Programmer

The iProg Pro 44-pin adapter is a professional iProg+ breakout board designed as a DB44 expansion board for iProg programmers. It provides a convenient interface for accessing all DB44 signals, simplifying bench work with ECUs, dashboards, and immobilizers. This ECU programming adapter eliminates guesswork by exposing every pin in a clear, organized layout—ideal for fast diagnostics and chip-level operations.

Key Features

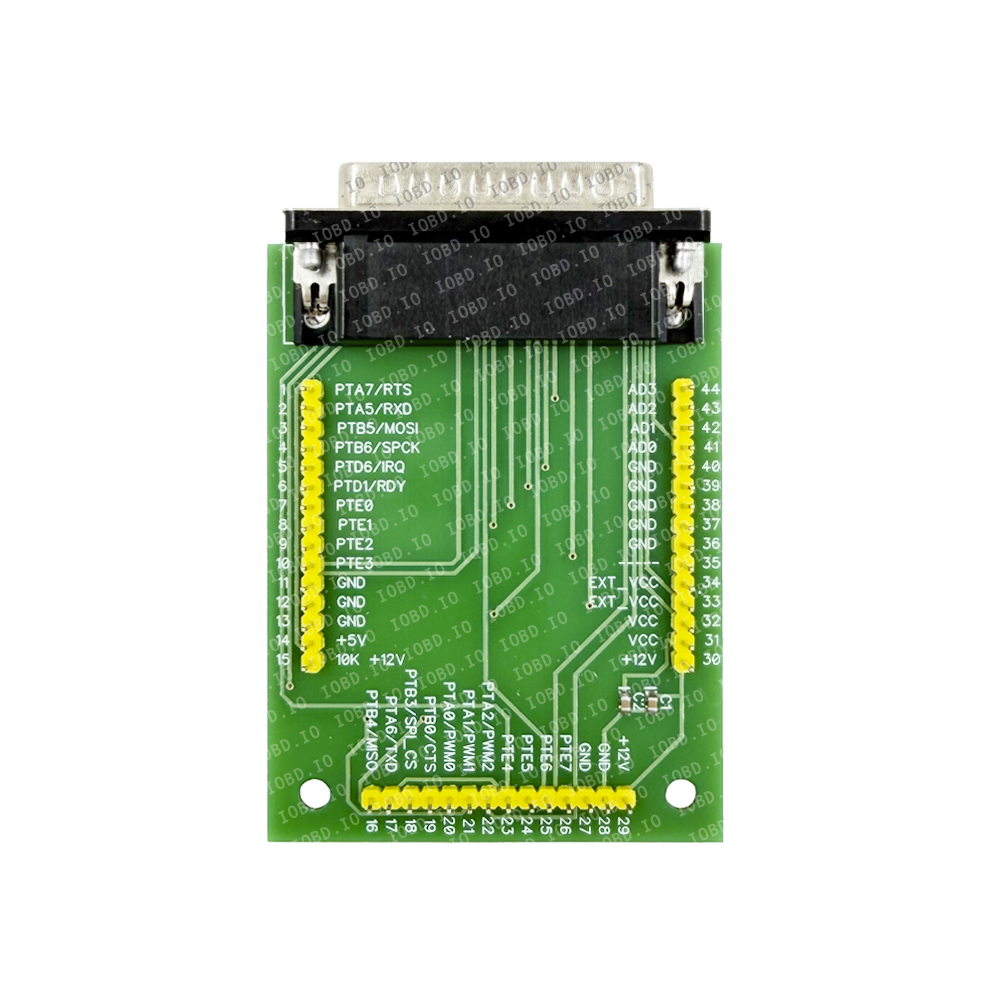

• Clear Pinout Labeling - All signals are precisely marked on the PCB, allowing technicians to quickly locate lines such as PTB5/MOSI or TXD without referencing схемatics.
• Universal Compatibility - Fully supports all functions requiring a 44-pin interface, making it a reliable iProg Pro pinout board for everyday workshop use.
• High-Quality PCB Construction - Manufactured with durable copper traces, ensuring stable signal transmission and safe handling of 12V ECU power lines.
• Time-Saving Workflow - Reduces setup time during bench operations—no need for multiple dedicated adapters.

Technical Specification (Pinout Overview)

• Voltage Lines: +5V, +12V, VCC, EXT_VCC
• Ground: Multiple GND points for improved shielding and stable operation
• Data Lines: PTA7/RTS, PTB5/MOSI, PTB6/SPCK (SPI), PTB4/MISO, TXD/RXD (UART)
• PWM & Control Signals: PTA0/PWM0, PTA1/PWM1, PTE0–PTE7, AD0–AD3

Use Case

This universal adapter for iProg is ideal for in-circuit programming, enabling direct connection to automotive modules without specialized adapters. It streamlines ECU repair, chip tuning, and immobilizer work—giving professionals fast, accurate access to critical signals while minimizing wiring errors.
