- Scripts work only with original devices iProg Pro
-
Processing Time: From a few hours up to several days.
Scripts are created individually by different third-party developers, so fulfillment speed depends directly on their current workload.
SAS G85 VAG Porsche D70F3628 repair Script for Original iProg Pro

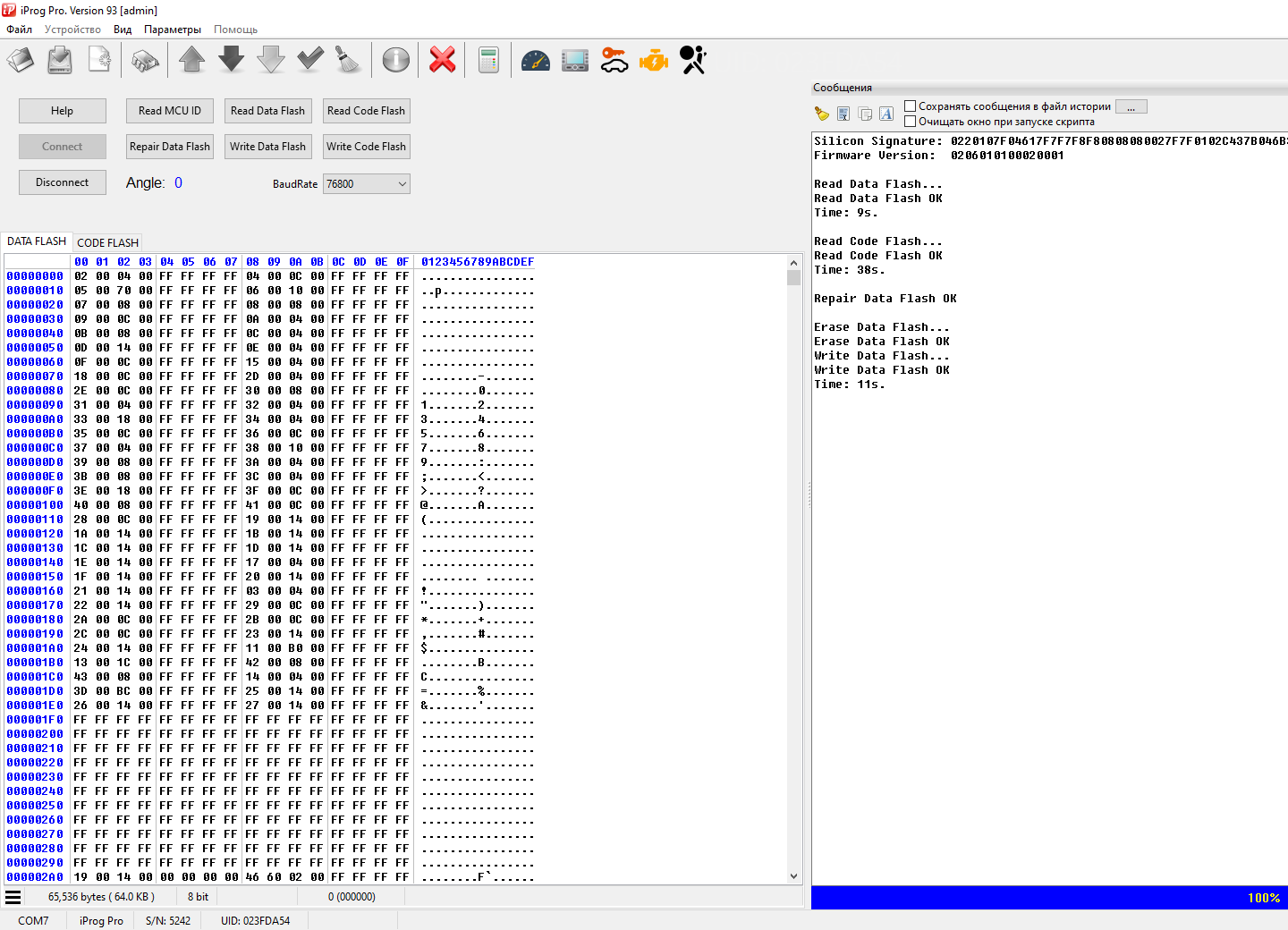

A script for reading/writing the uPD70F3628 processor (via UART), as well as for bench-testing steering angle sensors from VAG and Porsche (via CAN bus).
The script includes a built-in calculator for clearing specific error codes from the Data Flash: 00778-003, 00778-008, 00778-013, and 00778-014 (for VAG), and 801101, 801102, and 801103 (for Porsche). It also provides images showing connection points for the G85 sensor (via UART and CAN bus).
The script only works with original iProg Pro programmer! Please write Serial Number and UID in the order.
Key Features
- Reading processor ID (UART)
- Reading / writing Data Flash (UART)
- Reading / writing Code Flash (UART)
- Clearing VAG error codes 00778-003, 00778-008, 00778-013, and 00778-014 from Data Flash (CALC)
- Clearing Porsche error codes 801101, 801102, and 801103 from Data Flash (CALC)
- Testing steering angle sensors "on the bench" (CAN bus)
Supported Vehicle Models (Volvo P3 Platform)
- 4H0-953-568J
- 4H0-953-568K
- 4H0-953-568M
- 8K0-953-568Q
- 95B.953.568.A
- 95B.953.568.C
- 95B.953.568.E
Open the program and click “Help” -> “About”.
Copy data from the program when placing an order
After completing the order, you will receive files, they must be added to the Scripts folder..
Launch the program and on the left side of the screen you will see the added scripts.
