OBDstar MotoMaster: Universal Device for Diagnostics, Programming, and Repair of Motorcycles
OBDstar MotoMaster is a new device from OBDSTAR that offers functions similar to the MS80. It is designed for working with motorcycles, scooters, ATVs, electric bikes, and other land-based motor vehicles, but does not support marine equipment.
Key Differences Between MotoMaster and MS80 STD:
| Feature | MotoMaster | MS80 STD |
| Operating System | Android 11 | Android 5 |
| Processor | Cortex A55 2.0GHz | Cortex A9 1.4GHz |
| Battery | 9000 mAh | 3700 mAh |
| Bluetooth | 5.5 | - |
| Ports | RJ-45, HDMI, Type-C, Type-A | Type-A |
| CAN-FD | No additional adapter required | Requires additional adapter |
| DOIP | Yes | No |
| Low Speed CAN | Yes | No |
| RFID | Built-in | Requires P001 |
| Key Tester | Built-in | Requires RT100 |
Main Functions of OBDSTAR MotoMaster for Motorcycle Diagnostics:
- Reading, Decoding, and Clearing Error Codes: Quickly identifies faults in the motorcycle, decodes error codes, and clears them after fixing the issue.
- Real-Time Parameter Reading: Displays current sensor readings such as temperature, engine RPM, oil pressure—helpful for assessing vehicle condition.
- Guided Diagnostics: Step-by-step instructions for accurate system checks and troubleshooting.
- Actuator Testing: Allows testing of individual components like valves, pumps, and other mechanisms to assess functionality.
- System Adaptations: Configuration of new components or resetting parameters after replacing parts like the throttle body or sensors.
- Control Unit Coding: Programming ECU functions to customize and optimize motorcycle performance.
- Control Unit Programming: Reflashing and tuning ECUs to improve performance.
- Key Programming: Adding or removing keys for immobilizer systems.
- Odometer Correction: Adjusting mileage readings for supported models.
- ECU Firmware Work (Chip Tuning): Modifying firmware parameters to enhance power, fuel efficiency, or other characteristics.
- Service Interval Reset: Clearing maintenance reminders and performing other service-related functions.

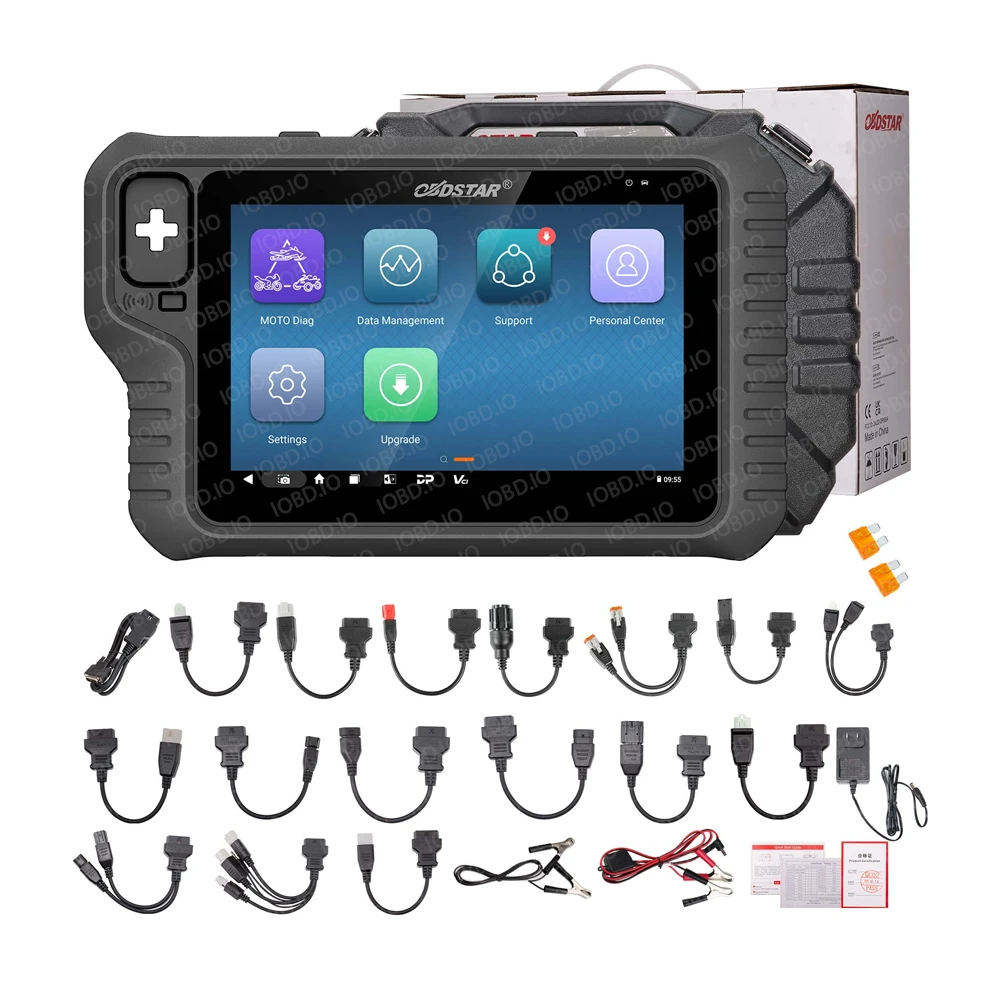

Package Contents:
- MotoMaster Tablet
- OBD2 Cable
- M003A Cable for direct ECU connection
- Adapter Set:
- Aprilia, Ducati, Honda, KTM, Piaggio, Vespa, Yamaha 3-pin
- Kawasaki 4+6 pin
- Suzuki 6 pin
- Honda 4 pin
- Yamaha 3+4+3 pin
- KTM 6 pin
- Aeon, Benelli, Benelli DSK, QJ Benelli 6 pin
- SYM 3 pin
- Kymco, Kawasaki 3 pin
- Harley-Davidson 4+6 pin
- Ducati 4 pin
- BMW 10 pin
- OBD 6 pin
- Indian, Victory 8 pin
- BRP 6 pin
- Power Adapter
- Power Cable with Alligator Clips
- GND Cable
- Carrying Case
