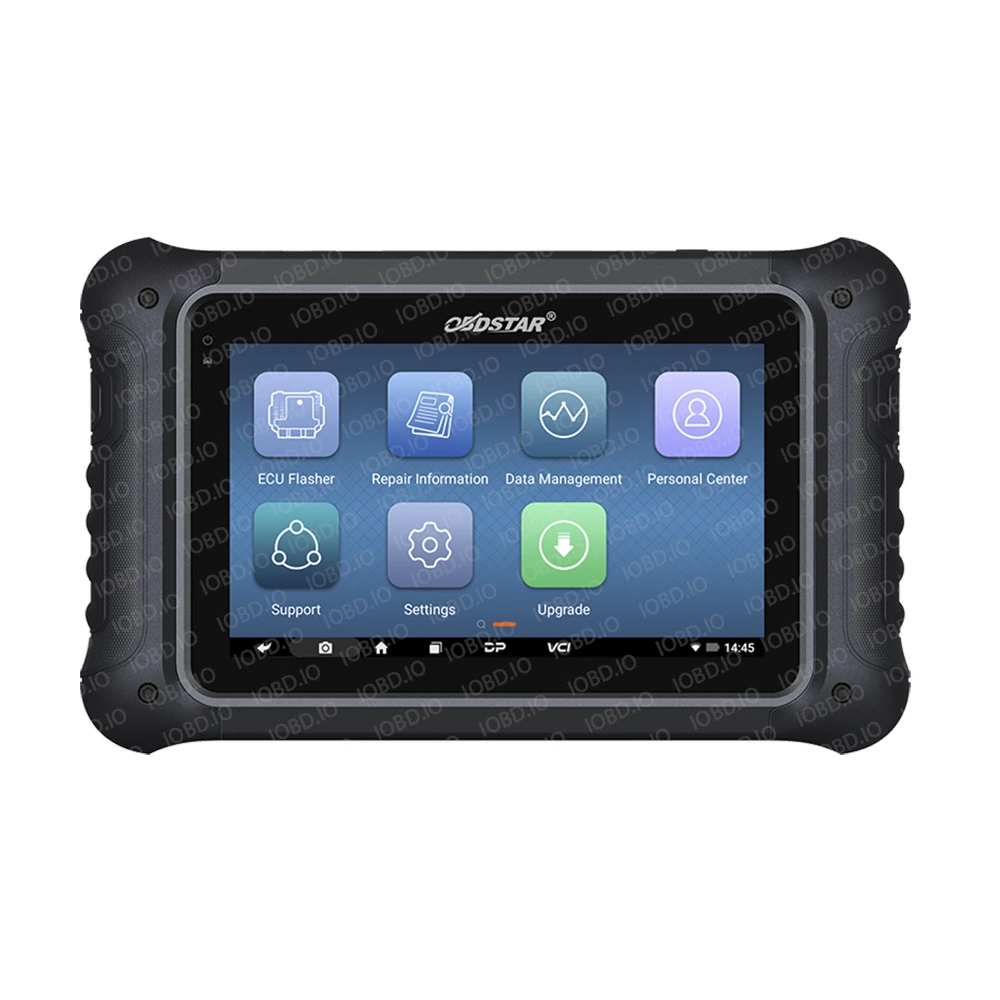

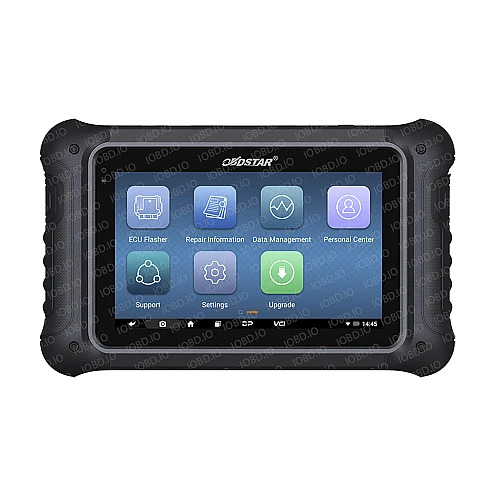

OBDstar DC706 – Professional OBD Programmer for Car and Motorcycle ECU Tuning
OBDstar DC706 is a versatile ECU programmer and OBD flasher designed for chip tuning of cars and motorcycles. ECU programming is supported via the OBD2 diagnostic port or in Bench mode (connection on the table without opening the unit).
Key Features of OBDstar DC706:
- ECU cloning for cars and motorcycles;
- TCM (transmission control module) cloning;
- Supports modules including: AIRBAG, BCM, BSI, CCM, DASH, DDM, EPS, ETM, ICM, KEYLESS (RFHUB), KVM, MIRROR, PDM, PHM, SAM, and others;
- ECU reset (Virgin mode);
- IMMO PIN code reading;
- ECU recovery;
- Reading and writing of EEPROM, PFlash, DFlash;
- Odometer calibration for DSG / VAG DQXXX TCM;
- Motorcycle ECU support for Delphi MT05 / MT05.2 / MT05.3;
- ECU cloning for BRP ME17.8.5 and Piaggio engines.
! Some functions require the additional P003 adapter (not included in the standard package).
Advantages and Capabilities:
- User-friendly software (English language);
- 1 year of free software updates after device registration;
- Detailed wiring diagrams, connection guides, and pinout photos included;
- Ideal for chip tuning workshops, auto electricians, and service centers.

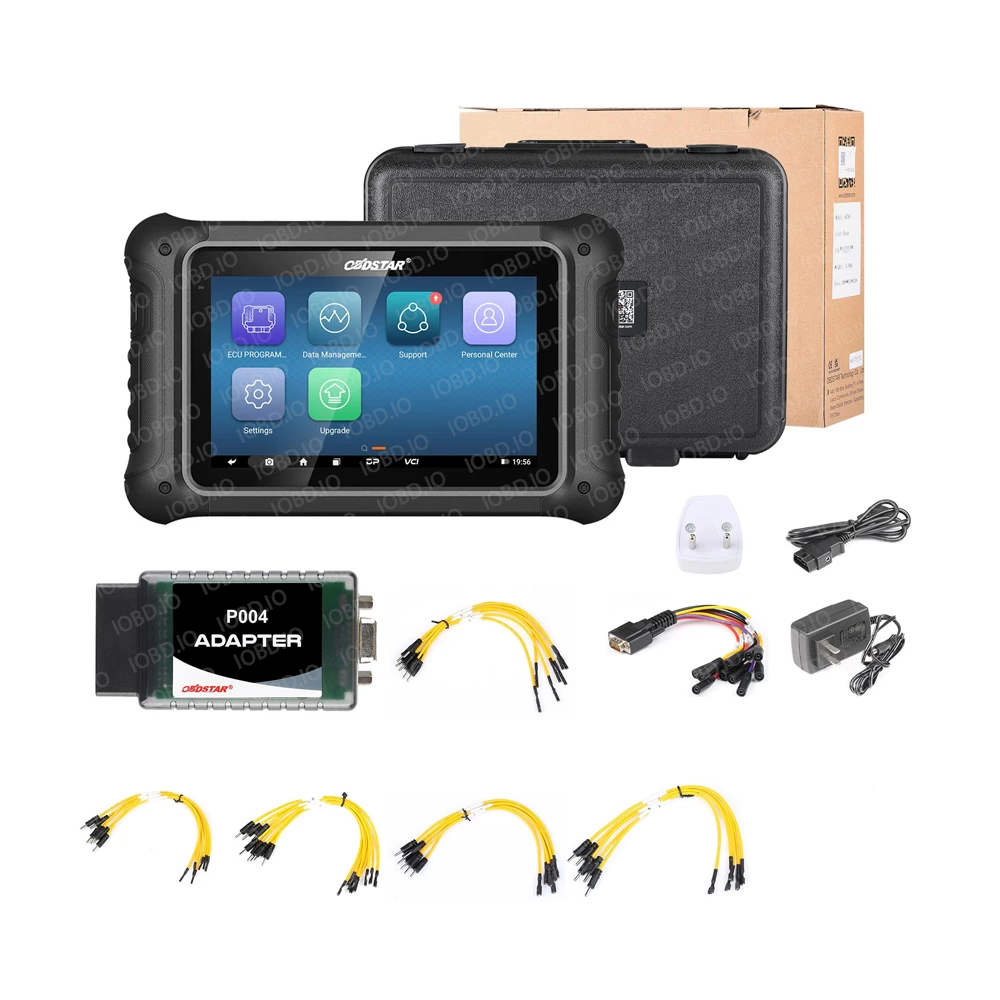

Package Contents:
- OBDstar DC706 programmer;
- OBD2 cable;
- P004 adapter;
- Bench wiring harness for ECU connection;
- Power supply;
- Protective carrying case.
Buy OBDstar DC706 — a reliable solution for ECU tuning, programming, and electronic control unit repair for both vehicles and motorcycles.
Important:
This function is available only on certain BMW engines and is NOT applicable to other vehicle brands.
The information below applies only to stock engines with factory ECU software and a standard exhaust system.
What This Parameter Actually Represents
This is NOT a direct measurement of fuel octane and is NOT a direct octane reading calculated by the ECU.
The value is an adaptation factor ranging from 0 to 1, where:
- 0 = no correction
- 1 = maximum correction
According to BMW’s internal definition:
Faktor adaptierte Kraftstoffqualität (0 = ROZ98 / 1.0 = ROZ91)
- 0 corresponds to 98 ROZ
- 1.0 corresponds to 91 ROZ
ROZ is the German equivalent of RON (Research Octane Number).
The device converts this multiplier into a more intuitive octane value for user convenience.
⚠️ The device does not measure anything itself.
It only displays the data provided by the engine control unit (ECU).
How the ECU Evaluates Fuel Quality
Each ECU has different calibration sensitivity:
- Sensitivity to the adaptation factor
- Sensitivity of the knock control system
Fuel quality is evaluated subjectively by the ECU, primarily based on:
- Knock ignition timing corrections
- Overall engine noise levels
BMW G-Series & LCI F-Series (B-Engines)
B38 / N63 / S63 / N74
These engines are highly sensitive to octane adaptation.
- During warm-up and cruising, the displayed octane may frequently drop to 95 or lower.
- This does NOT automatically indicate poor fuel quality.
- Under load, the value should increase.
⚠️ If the value continues to decrease under load, this may indicate a problem.
B46 / B48 / B58
These engines have low sensitivity.
- During cruising, octane will typically display maximum values even with mediocre fuel.
- Under load, the value will decrease if fuel quality is truly poor.
S58
Octane correction is virtually inactive.
- It will typically always show 98.
- If it drops below 98, fuel quality is genuinely very poor.
BMW F-Series (Pre-LCI) with N/S Engines
Most pre-LCI F-series ECUs do not calculate octane adaptation.
Do not expect this parameter to function.
S55
- Octane parameter not used by the system
- Display not supported
- However, display of the last 5 refueling quality events is supported
S63
- Octane parameter not used
- Display not supported
- Refueling quality display not supported
BMW E-Series
Octane parameter not available. Display not supported.
Important Notes About Tuned Vehicles
With modified hardware or custom tuning, behavior may vary significantly. Always consult your tuner regarding expected operation.
Key principles:
- If octane drops under load, it means fuel quality is worse than expected under those conditions.
- This does NOT automatically mean the fuel itself is bad.
Examples:
- If a tuner increases ignition timing and boost pressure, even good fuel may cause knock corrections, and the ECU may interpret it as poor fuel.
- Thin-walled or poorly mounted exhaust systems may create parasitic noise, which the ECU may interpret as engine knock, causing negative correction.
- Conversely, if knock sensitivity is reduced or octane correction is disabled in tuning, readings may appear ideal while actual engine safety is compromised.
