DK-5

DK-5 Multibrand scanner made by a Russian company for diagnosing diesel engines of trucks MAZ, PAZ, KAMAZ, GAZ, LiAZ, Ural, KAVZ, NefAZ, ZIL.

Main functions:

• Real-time data reading
• Data recording to a file
• Reading and clearing errors from the control unit memory
• Tests of executive mechanisms (except SCR Emitec, SAE J1939)
• Changing and calibrating parameters in the ECU (except EDC17, SCR Emitec, SAE J1939)
• Programming (except M240, M20, SCR Emitec, SAE J1939)

Supported units:

The DK?5 adapter works with the following software:

• EDCDiags. The EDCDiags program is designed to obtain identification, statistical, and diagnostic information from the Engine Control Unit (ECU), monitor ECU parameters in real-time with graphical display, record parameters, perform testing of certain engine components, and modify parameters by loading specially prepared manufacturer-calibrated data into the ECU.
• EDCFlasher. The program is designed for programming electronic control units (ECUs) of?50.3763, M230E3, M240, EDC7, EDC17 diesel engine management systems. Programming of ECUs should be performed when updating the software version loaded into the ECU or when installing a new ECU that does not yet have the program loaded.

Download the user manual

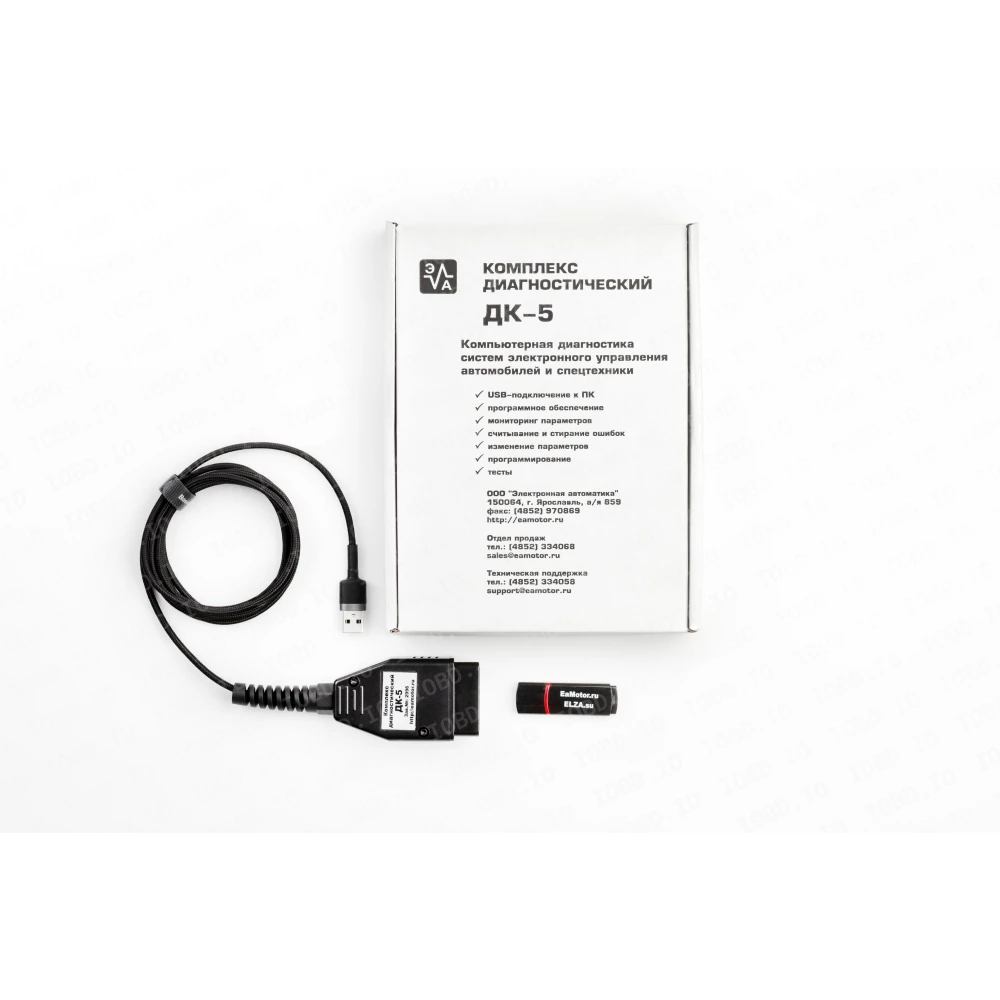

Package Contents:

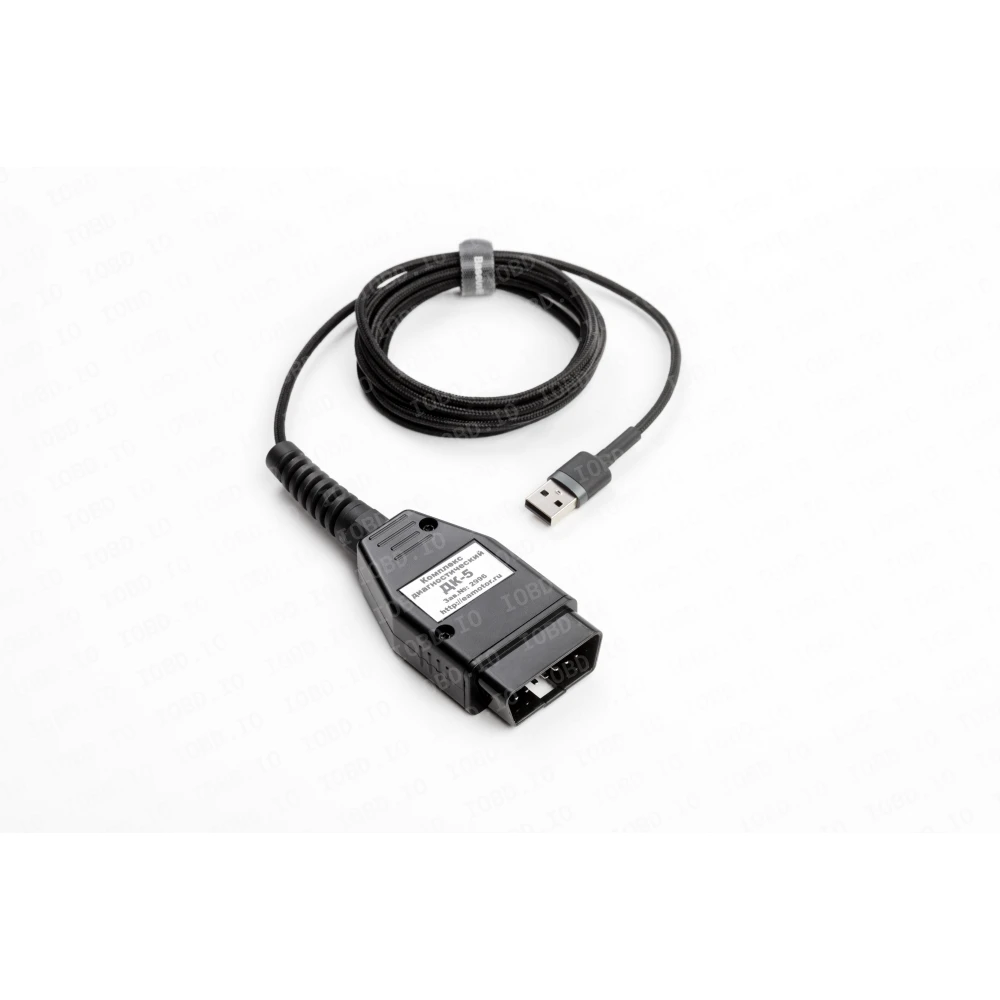

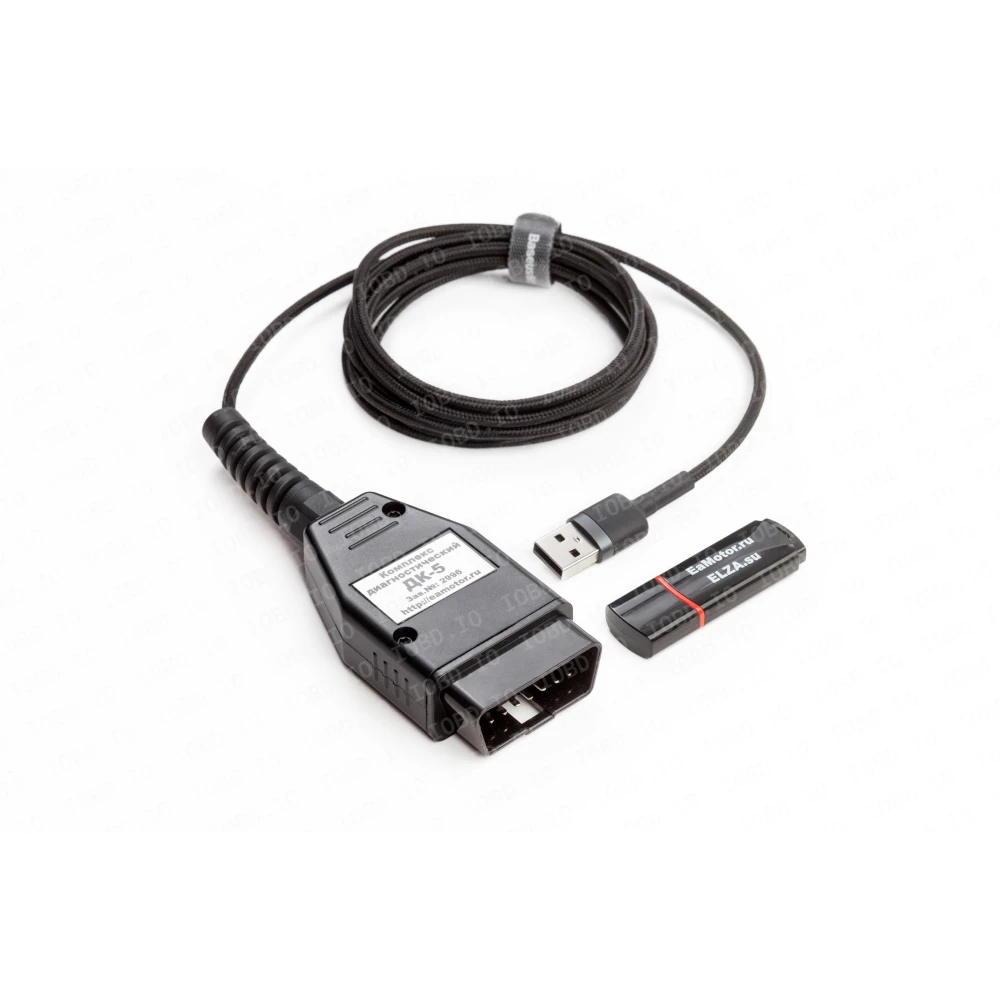

• DK-5 Adapter
• Driver and software disk
• User manual and passport
