CAN-Hacker CH-A M04 ADB

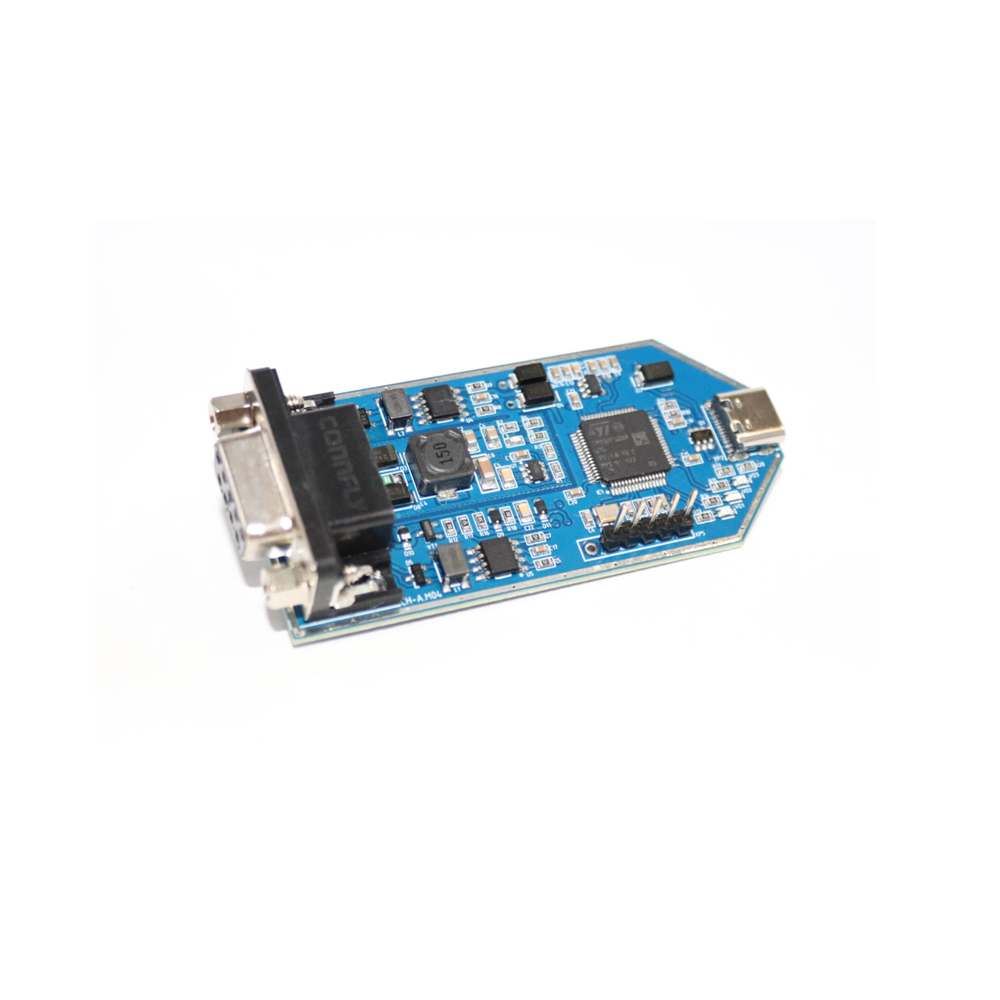

CAN-Hacker CH-A M04 ADB Platform for Development and Debugging

The CAN-Hacker CH-A M04 ADB is a specialized platform designed for the development and testing of electronic devices used in passenger vehicles with a 12V onboard power supply.

Important: This product is not a CAN bus analyzer and is not supported by CarBusAnalyzer or CAN-CODER software.

Key Features:

• Two CAN 2.0b channels
• USB-C connection to PC
• Built-in protected power supply from the vehicle's onboard network
• Open-collector discrete output (up to 1A)
• Discrete input (supports up to +24V)
• SWD programming interface (compatible with STM Nucleo boards)
• DB9 interface connector (compatible with CAN-Hacker interfaces)
• Three LED indicators

User Requirements:

• Proficiency in C/C++ programming languages
• Experience with STM microcontrollers
• Familiarity with CubeIDE development environment
