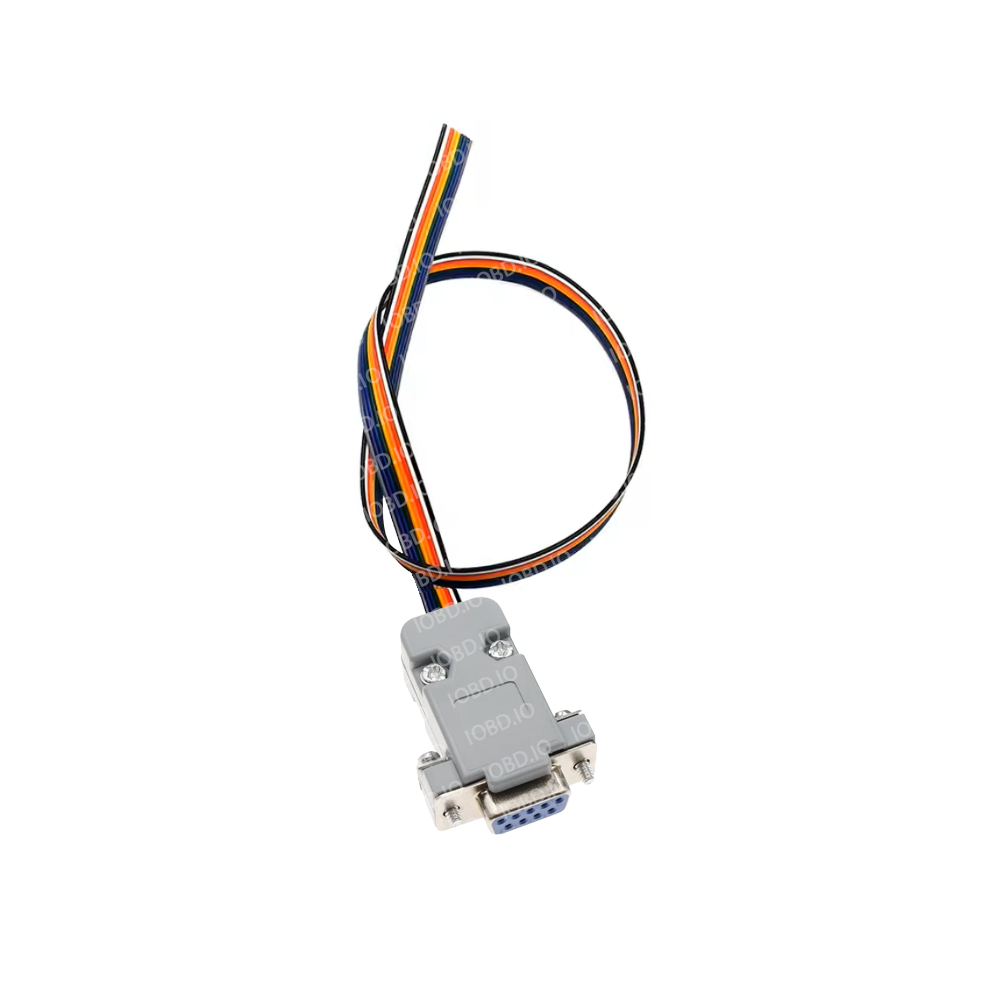

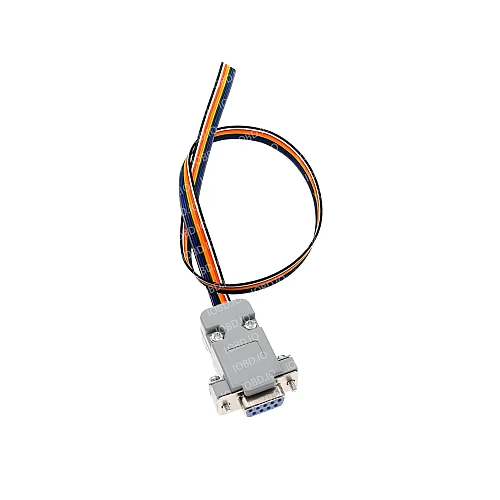

Cable DB9 (9 pin) for UPA-USB

9 Pin Cable for Elrasoft UPA Programmer — Soldering Wire for ECU Reading and Writing

The 9 pin (DB9) cable for the Elrasoft UPA-USB programmer is designed for working with automotive electronic control units (ECUs). It allows easy soldering to board contact points for reading and writing data from EEPROMs, microcontrollers, and other components.

Features:

• Fully compatible with the Elrasoft UPA programmer;
• High-quality multicolor ribbon cable for easy pin identification;
• Convenient connection to PCB test points without using a connector;
• Ideal for diagnostics, data recovery, and programming of automotive modules.

Pinout:

• P1: Black
• P2: White
• P3: Red
• P4: Orange
• P5: Yellow
• P6: Green
• P7: Blue
• P8: Purple
• P9: Gray
