Bench cable Scanmatik 2
$50
Bench cable Scanmatik 2
Popular
Points: 1
Specification
| Guarantee, months12 months |
Shipping Information
Enter a delivery address
Description
Compatible with any flashers that work in Bench mode and have automatic power control through the L line. Specifically, it is 100% compatible with PCM Flash and modules that work in Bench mode (no need to open the block and use the boot pin).

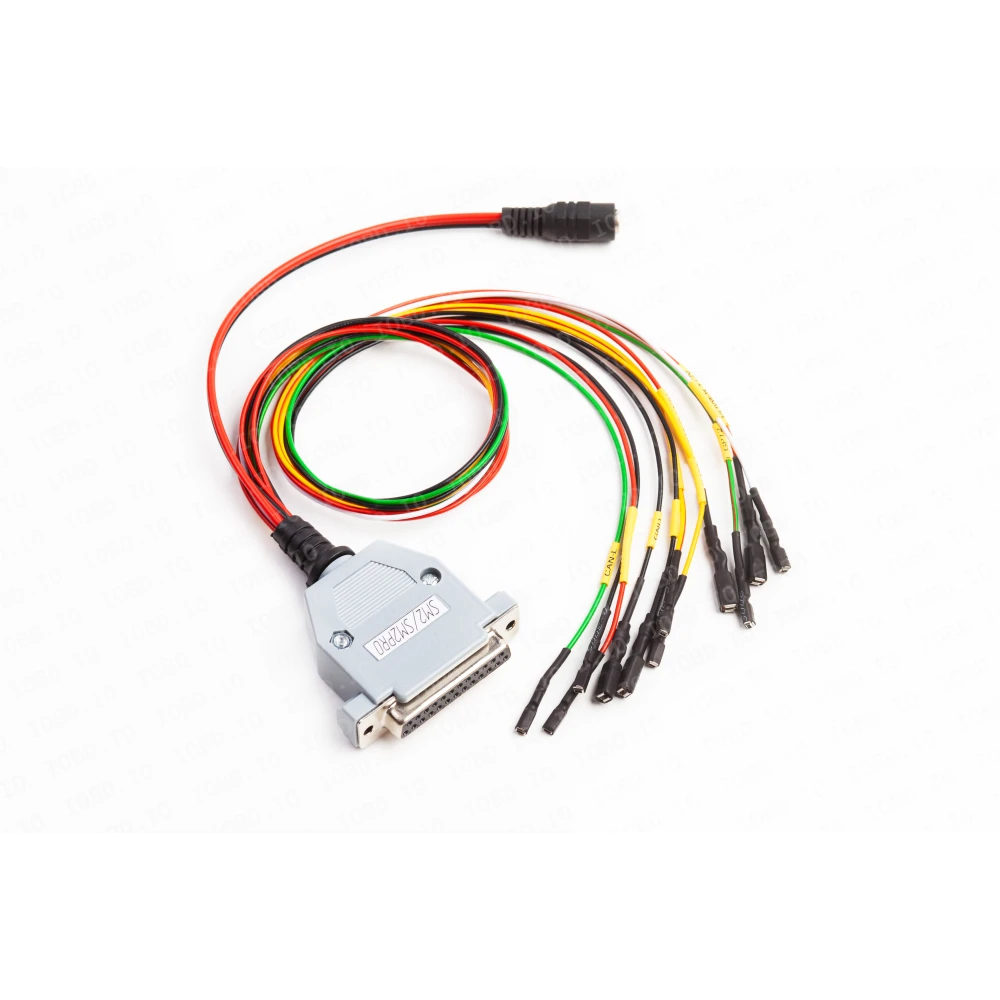

Universal Bench cable for Scanmatik 2 and Scanmatik 2 PRO.
Compatible with any flashers that work in Bench mode and have automatic power control through the L line. Specifically, it is 100% compatible with PCM Flash and modules that work in Bench mode (no need to open the block and use the boot pin).
Made in Russia.
The cable features automatic power control and signal lines. All wires are labeled, with white connectors at the ends.
The main difference from the popular boot/bench cable V2 is the absence of boot outputs and the inability to work with module 53.
The adapter has LEDs to indicate its status.
Tested on PCMFlash modules 42, 44, 58, 71, 77, 80, 86, 89, and Bosch MG1/MD1 BENCH BitBox module. It will work with any modules on the bench that do not require a boot signal.
Pinout of Scanmatik 2 Bench cable:
- +12V - red (2 large and 1 small contact)
- GND - black (2 large and 1 small contact)
- CAN H - white (1 middle contact)
- CAN L - green (1 middle contact)
- K-Line - yellow (1 small contact)
- GPT1 - yellow with red (1 middle contact)
- GPT2 - green with red (1 middle contact)
Specifications Bench cable Scanmatik 2
Technical Details
| Guarantee, months | 12 months |
|---|
