Adapter BITS001
$59.73
Adapter BITS001
Bestseller
Points: 1
Enter a delivery address
Description

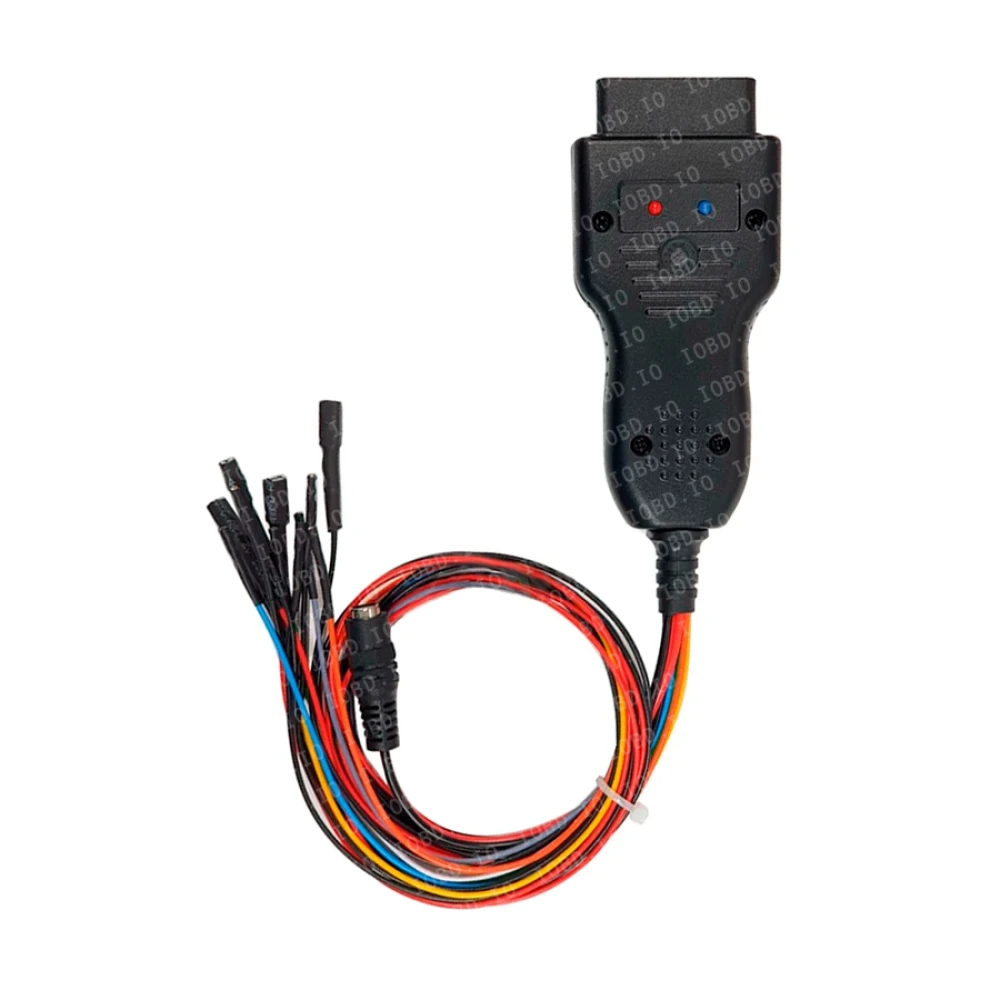

The BITS001 adapter is designed to connect control units on the table and the Bitbox software.
The adapter performs automatic power and boot-pin control via the J2534 adapter and is necessary for reading in BSL mode for Bosch M7.8/ME7.8.8 control units and for working with Continental SIM2K-25x/26x units.
BITS001 pinout:
- ECU_PWR (RED)
- CAN_LOW (BLUE)
- CAN_HI (YEIIOW)
- K-LINE (GREEN)
- BOOT_H0 (ORANGE)
- BOOT_L0 (GRAY)
- BOOT_L1 (WHITE)
- GND (BLACK)
