Auto Prog Master Adapter for iProg Pro: Multi-Functional 4-in-1 Programmer
Auto Prog Master adapter for iProg Pro— the ultimate professional solution for automotive locksmiths, key programming specialists, and ECU repair technicians. The Auto Prog Master multi-functional board integrates four independent hardware interfaces into a single device, replacing a cluttered mess of separate adapters. It optimizes your workspace and significantly expands the capabilities of the original iProg Pro programmer.
The adapter is not original and requires removing the pin protection on the adapter to connect to iProg Pro.

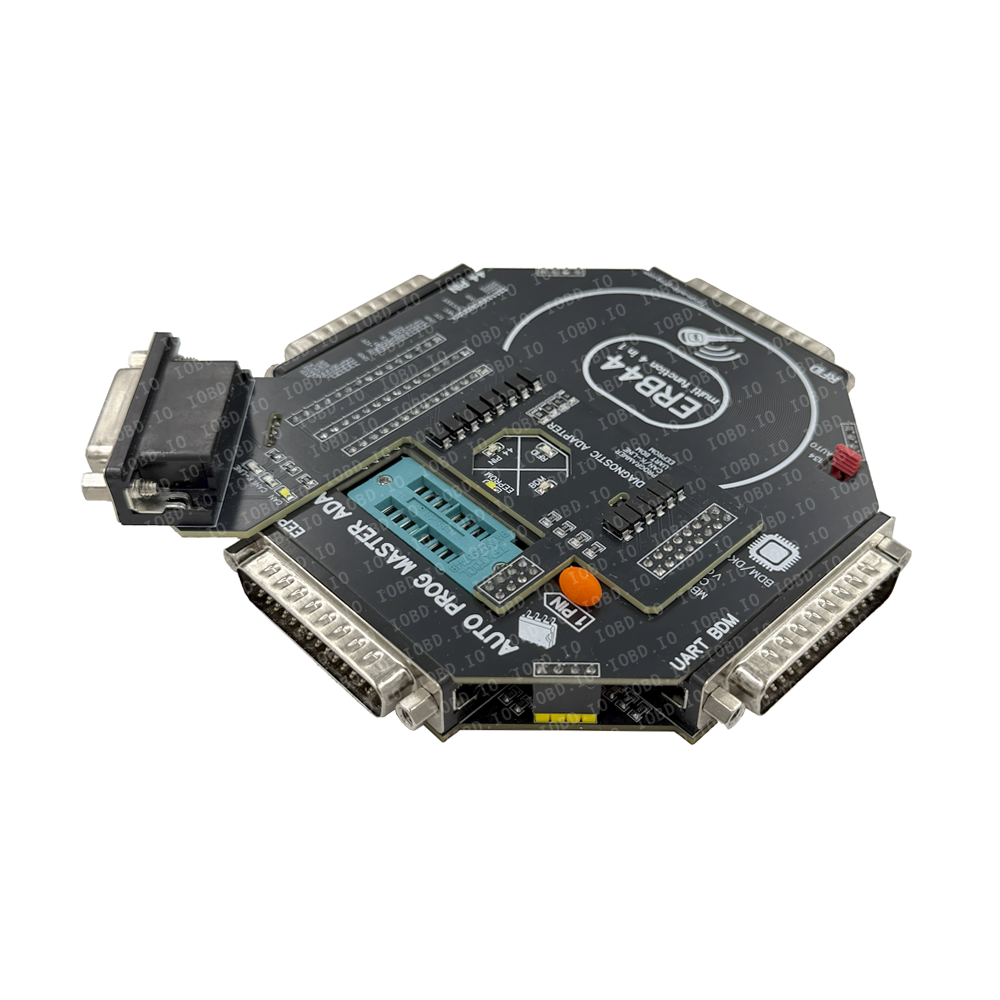

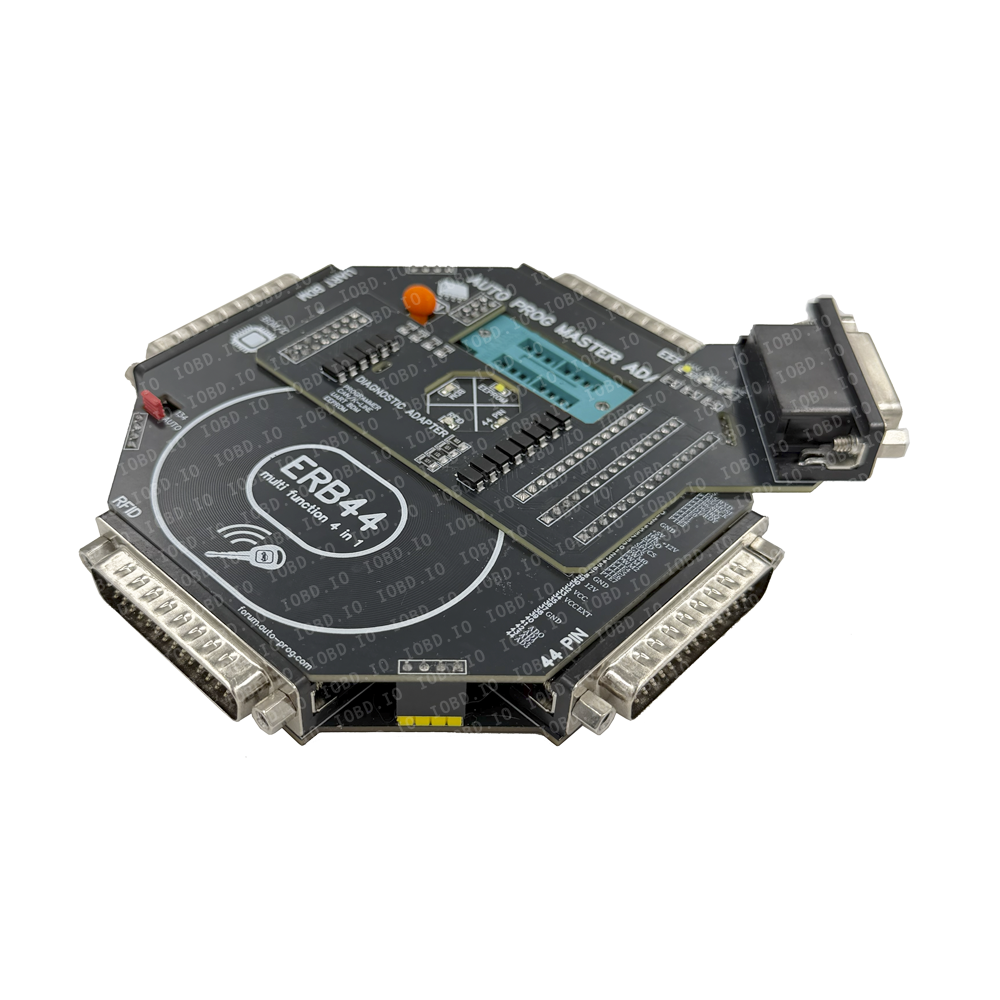

Engineered as a seamless hardware upgrade, this board is fully compatible with the professional iProg Pro programmer. It supports direct plug-and-play connection for expansion boards (such as the EEPROM Reader Board and Diagnostic Adapter) into onboard slots without requiring any external wiring.
Key Features and Functional Modules
EEPROM Programmer (Memory IC Flashing)
The EEPROM module features a high-quality blue ZIF socket for secure installation of DIP-package microchips. It is designed for reading and writing memory chips found in immobilizers, instrument clusters, engine control units, and other automotive modules.
- In-Circuit Programming (ICP): Equipped with a dedicated slot for the EEPROM Reader Board, allowing you to work with SMD chips (SOIC-8) using clips without desoldering.
- Core Functions: Read, write, verify, and edit hex dumps.
- LED Indication: Visual status monitoring for active read/write operations.
- Applications: BSI resetting and adaptation, mileage correction, dashboard repair, and ECU chip tuning.
RFID Module — Key Transponder Programming & Cloning

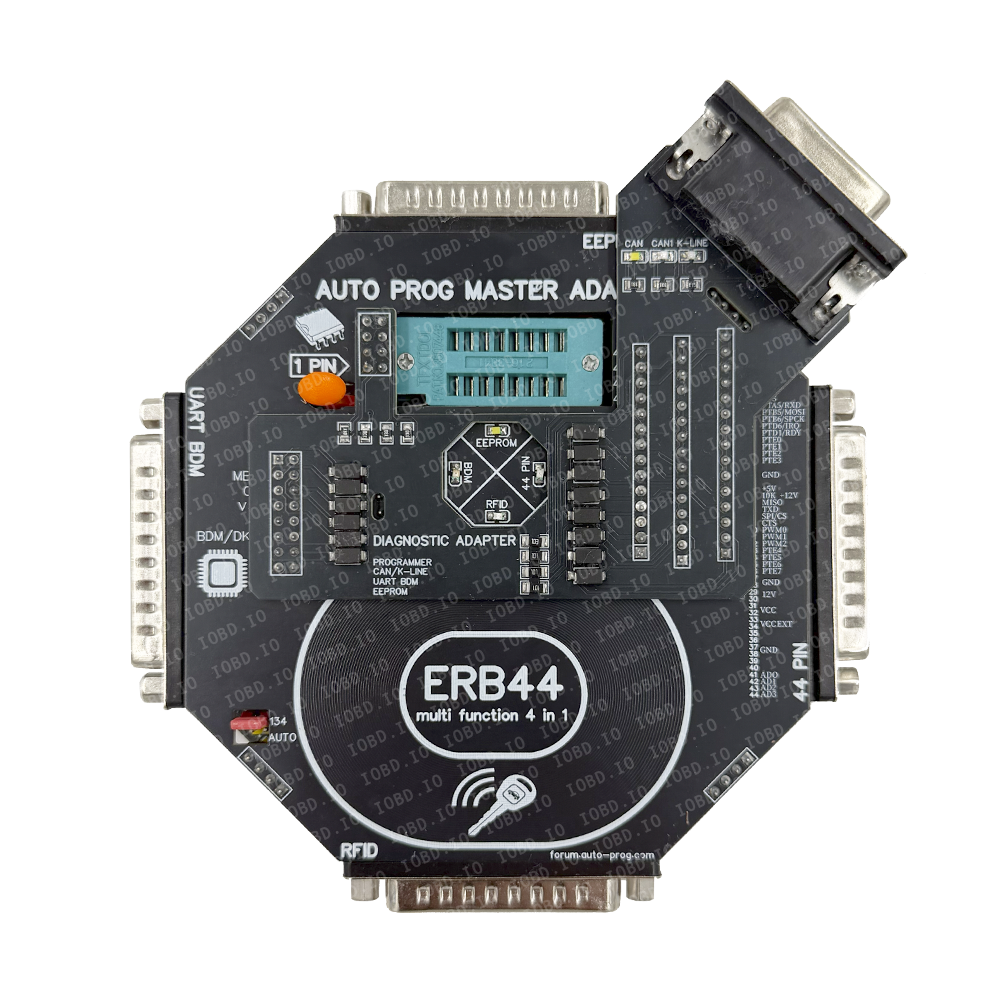

The built-in RFID antenna is strategically positioned in the center of the PCB, marked with a distinctive key logo to ensure maximum signal stability when scanning automotive keys.
- Chip Identification: Instantly detects the transponder type, generation, and lock status.
- Key Cloning: Duplicate immobilizer chips for remote starters and spare keys.
- Wide Coverage: Supports major transponder protocols used by leading global car manufacturers.
BDM / DKGD Interface — Low-Level ECU Bootloader
The BDM (Background Debug Mode) and DKGD interfaces provide direct, low-level access to the microcontrollers of engine control units (ECUs), bypassing the standard OBD-II diagnostic port.
- Full Memory Access: Direct reading and writing of Flash and EEPROM microchip partitions.
- ECU Recovery: Revive "bricked", locked, or protected ECUs after failed tuning attempts.
- Microcontroller Support: Compatible with Motorola HC12, MPC5xx, Nexus, and other widely used processors.
- Convenience: All necessary pinouts are clearly labeled on the PCB surface for error-free wiring.
UART / K-Line / CAN — Diagnostic & Service Interface
The diagnostic module provides access to serial protocols heavily utilized in automotive diagnostics, module coding, and firmware adaptation.
- Onboard Pinout: Features dedicated pins for TX, RX, MBUS, CLK, VCC, GND, and RST.
- Modular Expansion: Includes a slot for the Diagnostic Adapter sub-board, adding full CAN-bus support and advanced multiplexing capabilities (CAN, K-Line, PROGRAMMER, EEPROM).
- Applications: Advanced diagnostics, service programming, adaptation of actuators, and clearing Diagnostic Trouble Codes (DTC).
