Scripts for odometer correction in instrument panels of NS Suzuki Vitara/Ignis/XL7 vehicles equipped with Fujitsu MB91F579CHS or MB91F577BHS microcontrollers and external EEPROM 25C320 (TSOP8).
The script only works with iProg Pro programmer!
The script is designed for convenience in working with these panels.
In the Suzuki Vitara panel, there is NO in-circuit access to the EEPROM, meaning that to read/write the EEPROM, you need to remove 4 indicators, which are Mazda-style as usual, with the arrow remover being useless due to the arrow's design. This is why the script was created to work with the EEPROM through the MB91F579 processor.
In the Suzuki Ignis, the EEPROM is located under the rear cover, and the script is designed to avoid the hassle of using pogopins or soldering. Operation with the EEPROM is conducted through the MB91F577 processor.
The script supports reading/writing EEPROM and has a built-in odometer calculator. Operation with the panel is conducted through points on the back side of the printed circuit board.

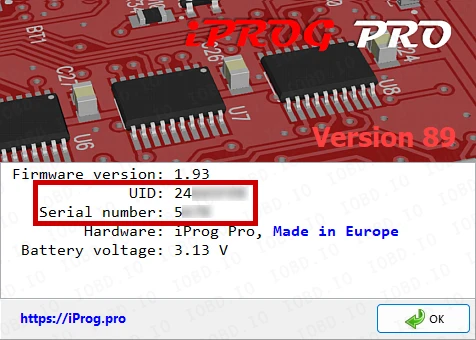

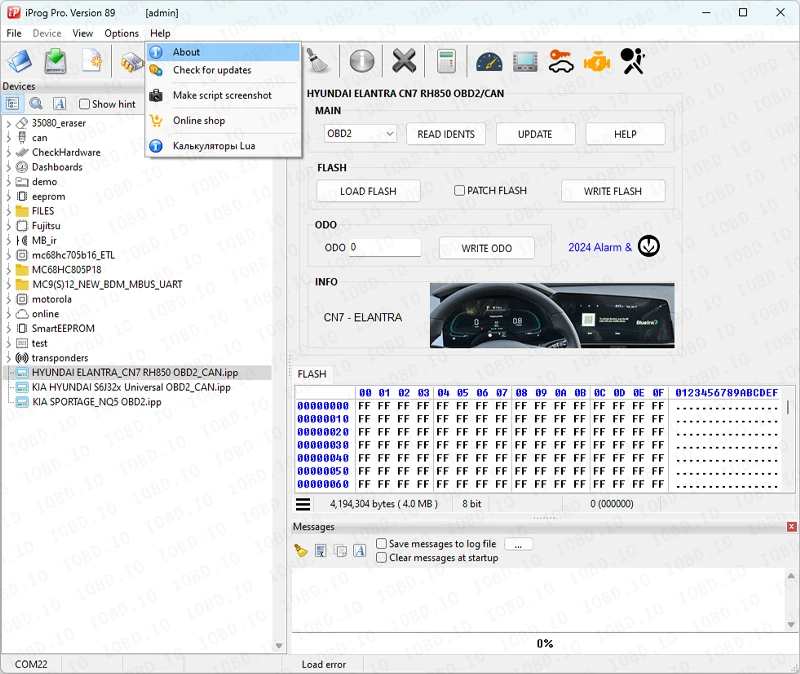

Open the program and click “Help” -> “About”.
Copy data from the program when placing an order

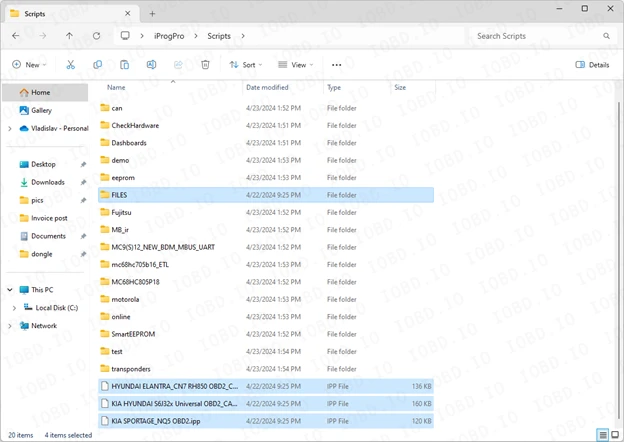

After completing the order, you will receive files, they must be added to the Scripts folder..

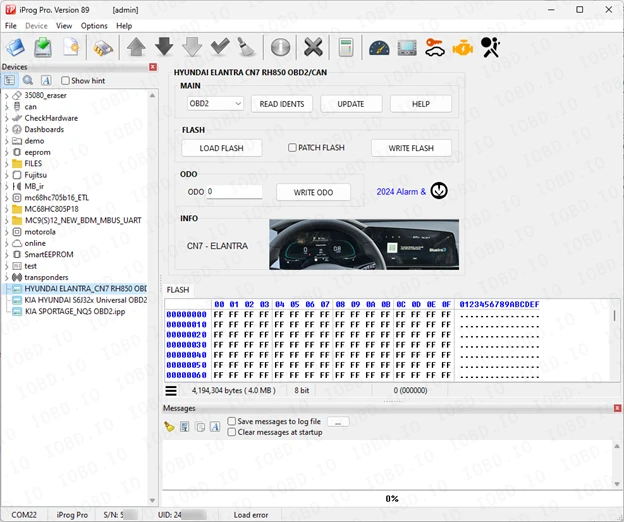

Launch the program and on the left side of the screen you will see the added scripts.
