CGDI CG Pro 9S12

CGDI CG Pro 9S12 – Comprehensive Universal Programmer

The CGDI CG Pro 9S12 is a versatile programmer designed for working with EEPROM chips, processors, instrument clusters, engine control units (ECUs), and immobilizers for BMW, Mercedes, Land Rover, Porsche, and Audi vehicles. It combines all the functionality of the CG-100 programmer and is available in a complete package with multiple adapters to enhance its capabilities.

As an official dealer of CGDI equipment, we offer the full range of CGDI products, including the CG Pro 9S12, with free online software and firmware updates available directly from the manufacturer’s website.

Key Features of CGDI CG Pro 9S12

• EEPROM and processor programming: Reads and writes data from various chips and processors.
• ECU and immobilizer support: Compatible with BMW CAS1–CAS4+, Mercedes EIS, and others.
• Instrument cluster programming: Supports BMW, Mini, Mercedes, Land Rover, and Audi.
• Odometer correction: Handles odometer adjustments for BMW, Mercedes, and other brands.
• Key programming: Includes support for BMW CAS3/CAS4, Porsche BCM, and other models via EEPROM dumps.

Supported Systems and Applications

• ECU IMMO systems: Supports major brands, including BMW, Mercedes, and Land Rover.
• Key programming: BMW CAS3, CAS4, Porsche BCM, and more.
• Chip support: Wide range of Motorola, NEC, and AMD chips, along with 8-pin EEPROMs.

Supported chipsets CG Pro

Motorola:

• 9S12: 9S12XDP512-0L15Y, 9S12XDP512-1L15Y, 9S12XDP512-0M23S, 9S12XEP100-1N35H, 9S12XEP100-5M48H, 9S12XEx512-2M25J, 9S12XEx512-3M25J, 9S12D64-2L86D, 9S12DJ64-0M89C, 9S12DT128-1L59W, 9S12DT128-4L40K, 9S12DT128-1L85D, 9S12DG128-3L40K, 9S12DG256-0L01Y (CAS), 9S12DG256-2K79X, 9S12XHZ384-1M80F;
• HC912:HC912DG128-0K50E, HC912DG128A-0L05H, HC912DG128A-3K91D;
• HC908:HC908AZ60-4J74Y, HC908AZ60-1J35D, HC908GR16-4L35K;
• HC711:HC711EA9-2D47J;
• HC705: HC705-0D69J  HC705-0D53J;
• NEC: D70F3634  D70F3380;
• ST: 35080DQ, 35160DQ, 35080_3/6, 35080VP/V6.

8-pin EEPROMs:

• 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C01A, 24C01B, 24C02B, 24LC01A, 24LC01, 24LC02, 24LC04, 24LC16, 24LC32;
• 25010,  25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256;
• 93C46, 93C56, 93C66, 93C57, 93C76, 93C86, 93A86, 93CS56, 93CS66, 93S56, 93LC46, 93LC56, 93LC66, 93LC76, 93LC86;
• 95010, 95020, 95040, 95080, 95160, 95320, 95640, 95128, 95256.

AMD:

• AM29BL802CB, AM29F200, AM29F400, AM29F800.

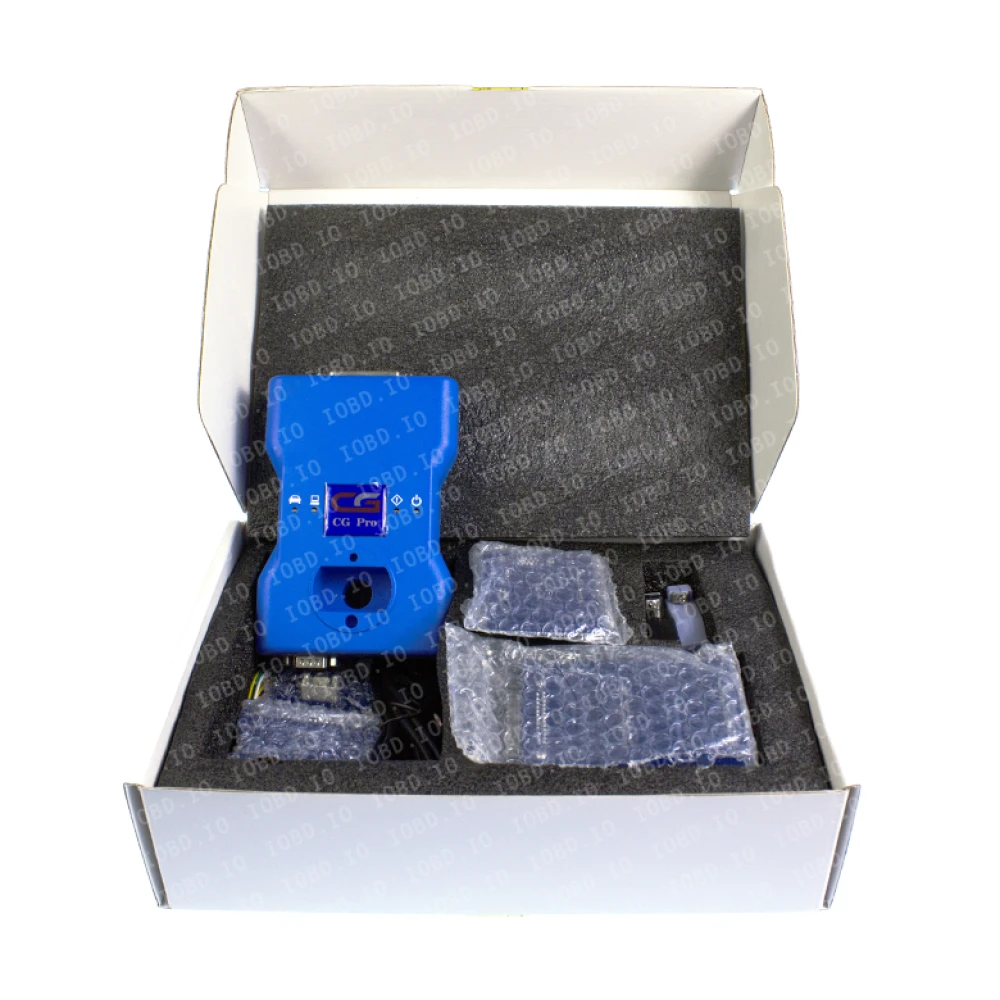

Complete Package for CG Pro 9S12

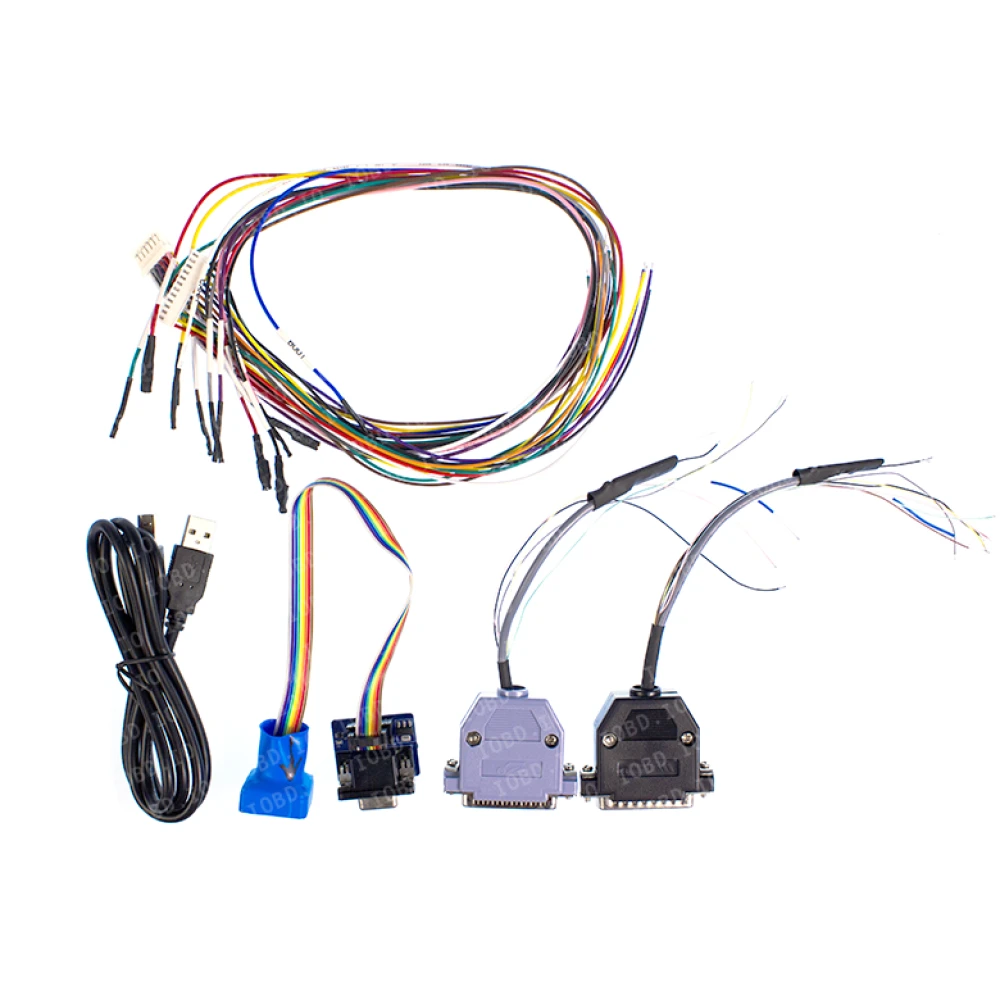

The CG Pro 9S12 Full version includes all necessary adapters for seamless work:

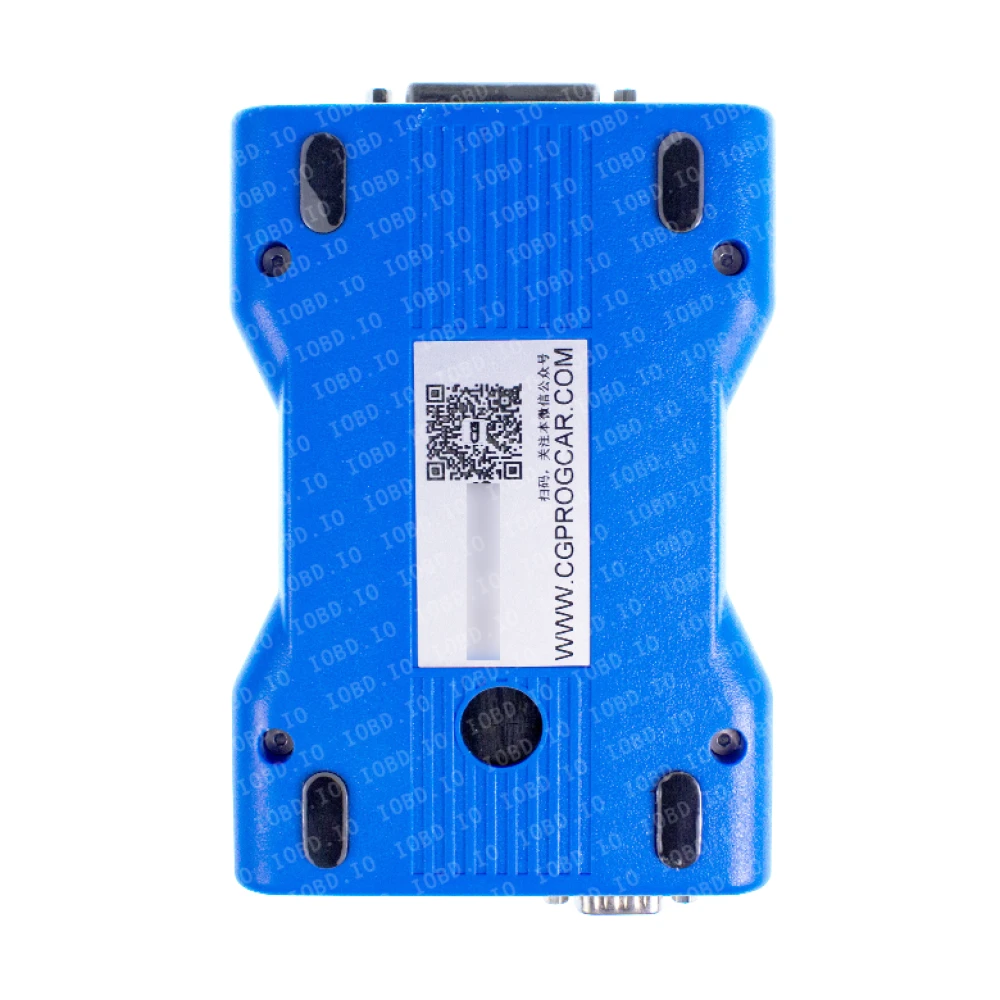

• CG PRO 9S12 programmer

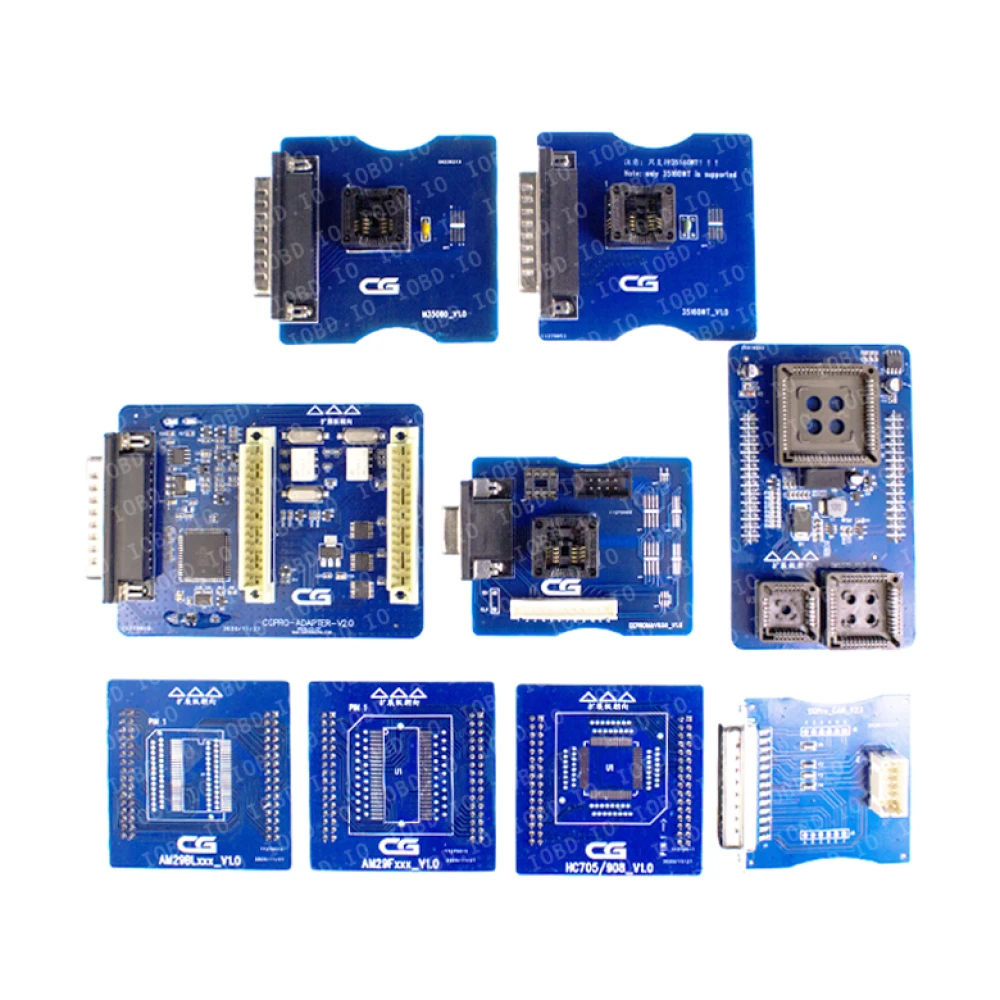

• M35080/35160 adapter
• EEPROM & V850 adapter
• 3-in-1 HC705/908, AM29FXXX adapter
• 35160WT adapter
• CAN V2.1 adapter
• CAS4 DB25 adapter for solder-free read/write
• USB cable and storage case
